AOZ18101DI-02 14 V 20 mΩ Over-Voltage Protection eFuse
Alpha and Omega Semiconductor
AOZ18101DI-02 ：14 V 20 mΩ Over-Voltage Protection eFuse with Built-in or External Control Blocking FET

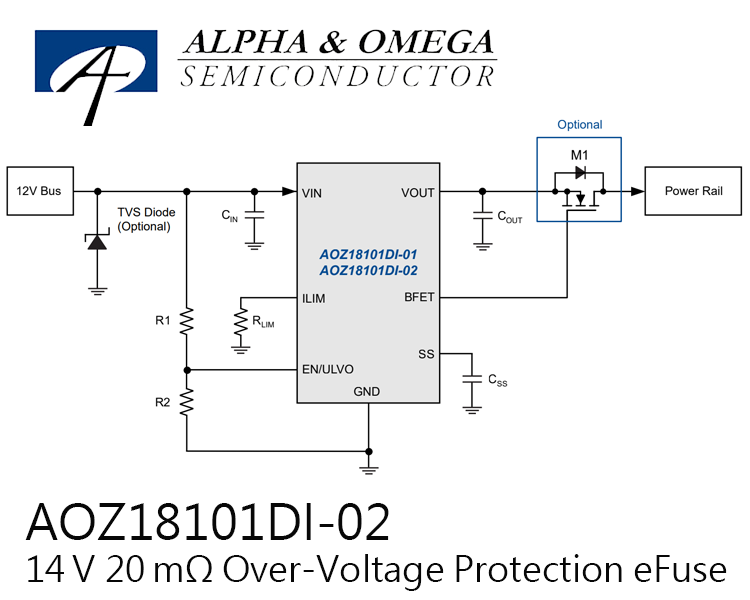

AOZ18101DI-02 is a programmable current-limiting over-voltage protection eFuse in a 3 mm x 3 mm DFN-10L package targeted for server and telecom applications. Both VIN and VOUT terminals are rated at 22V absolute maximum. There is a programable soft-start feature that controls the inrush current for highly capacitive loads. It also features an Input Over-Voltage Output Clamp (OVC) and Thermal Shut Down Protection (TSD). AOZ18101DI-02 has built-in blocking FET for True Reverse Current Blocking (TRCB). AOZ18101DI-02 provides latch off after fault is detected. For BOM compatibility with industry products, an external blocking FET control pin is also available if standalone MOSFET is preferred.
| Part Number | Mounting Type | Product Status | Function | Voltage - Input | Current - Output | Operating Temperature | Power Line Protection | Package Type |
|---|---|---|---|---|---|---|---|---|
| AOZ18101DI-02 | Surface Mount | Active | Electronic Fuse | 3.5V ~ 14V | 5A | -40°C ~ 125°C (TA) | No | 10-DFN-EP (3x3) |
-
Datasheet Download on Aug, 2022
