AOTF20B65LN2 Single IGBTs
Alpha and Omega Semiconductor

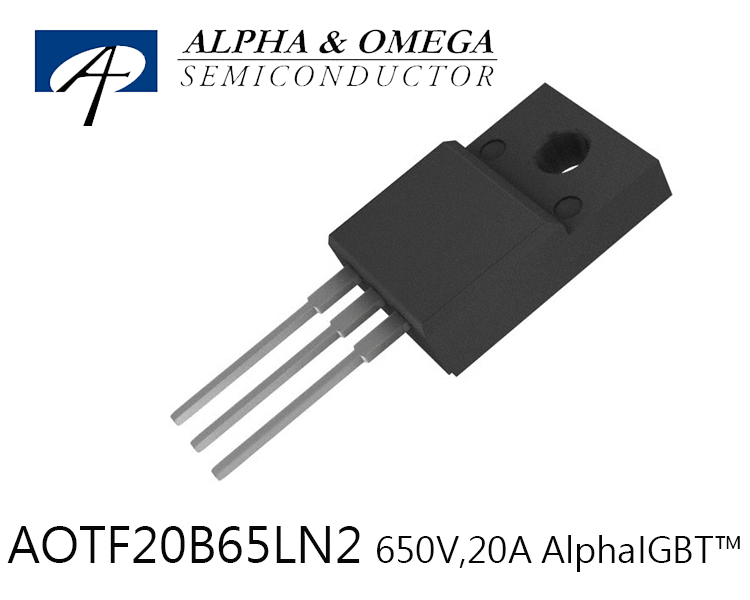

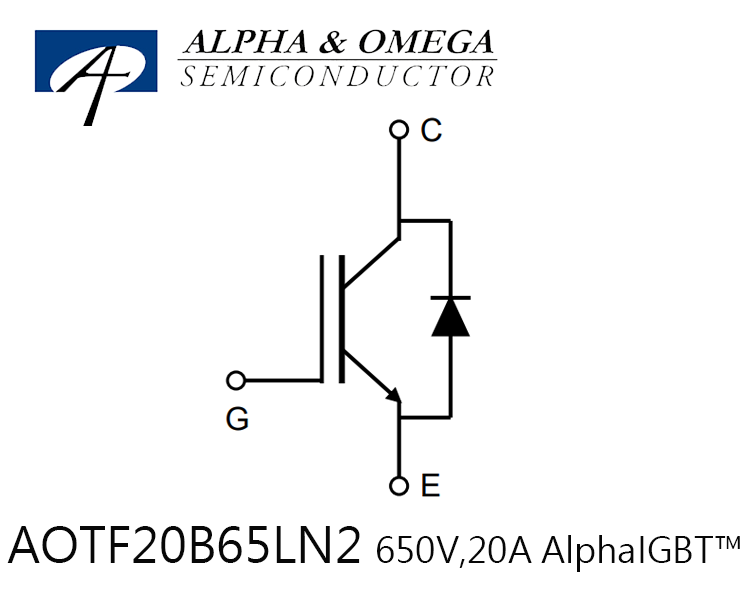

AOTF20B65LN2 ：650V, 20A AlphaIGBT™ With Soft and Fast Recovery Anti-Parallel Diode
AlphaIGBT™ line of products offers industry-leading fast turn-off and low VCE(SAT) performance, allowing for a larger safety design margin. Designed with controllable turn-on di/dt features, AlphaIGBT devices enable lower EMI design effectively. Our IGBTs are ideal for major home appliance, industrial and automotive applications.
| Part Number | Mounting Type | Input Type | Current - Collector (Ic) (Max) | Voltage - Collector Emitter Breakdown (Max) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Gate Charge | Td (on/off) @ 25°C | Test Condition | Operating Temperature | Reverse Recovery Time (trr) | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

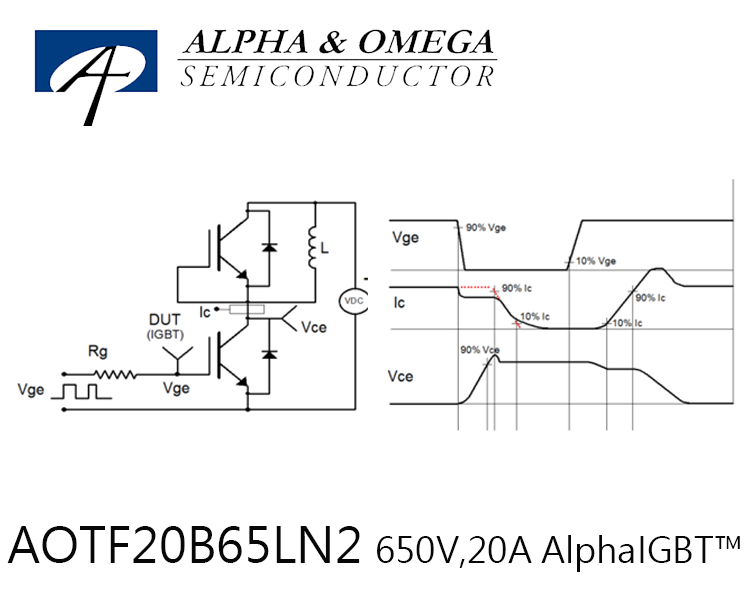

| AOTF20B65LN2 | Through Hole | Standard | 40 A | 650 V | 1.95V @ 15V, 20A | 45 W | 450µJ (on), 260µJ (off) | 52 nC | 23ns/135ns | 400V, 20A, 15Ohm, 15V | -55°C ~ 150°C (TJ) | 266 ns | TO-220-3 Full Pack |
-
Datasheet Download on Jan, 2021
