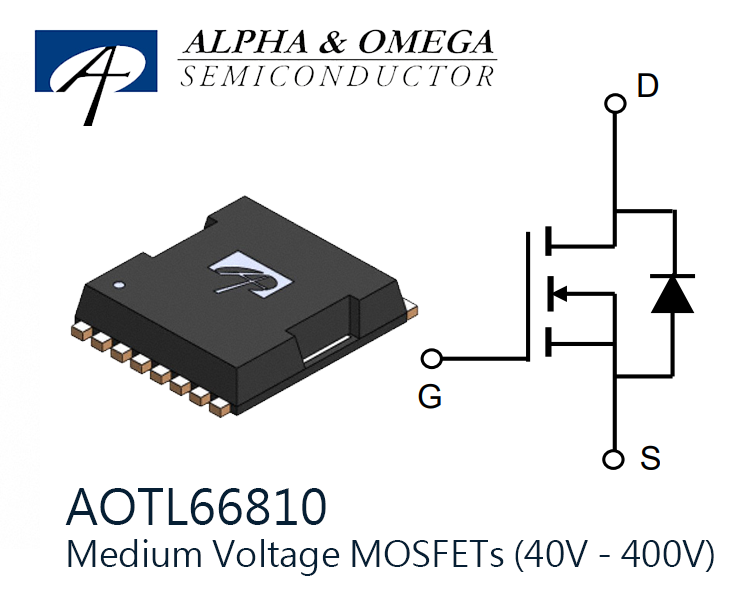

AOTL66810 Medium Voltage MOSFETs

Alpha and Omega Semiconductor

AOTL66810 : Medium Voltage MOSFETs (40V - 400V)，80V N-Channel AlphaSGT™

AOTL66810 is a Silicon MOSFET rated at 80V, 420A, 0.00125Ω Rdson(max) in TOLLA

Product Number: AOTL66810

Class: MOSFETs ,Discrete Semiconductor Products,Transistors, FETs-MOSFETs, Single-FETs-MOSFETs

Tag: MOSFETs, FETs-MOSFETs

AlphaSGT N-Channel Power MOSFET
Excellent gate charge x R DS(ON) product (FOM)
PB-free lead plating, RoHS compliant

Applications ：
BLDC Motor Drive
Battery Management
Load Switch

Part Number Configuration Channel Material BVDSS RDS(ON) typ, max ID max PD max QGS typ, max (nC) QGD typ, max (nC) QG Total typ, max (nC) RthJA max RthJC max Package Type
AOTL66810 single N-Type Silicon 80 V 0.001, 0.00125Ω (At VGS = 10V, TA = 25°C) 420 A 425 W 50, na 35, na 175, 245 45 c/w 0.35 c/w TOLLA (Surface Mount, 8 Pins, Thermalpad: Bottom WxL: 9.90 x 11.68mm)

See more...AOS

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on Apr, 2021
