Products Overview
AONS66916 Medium Voltage MOSFETs (40V - 400V)
Alpha and Omega Semiconductor

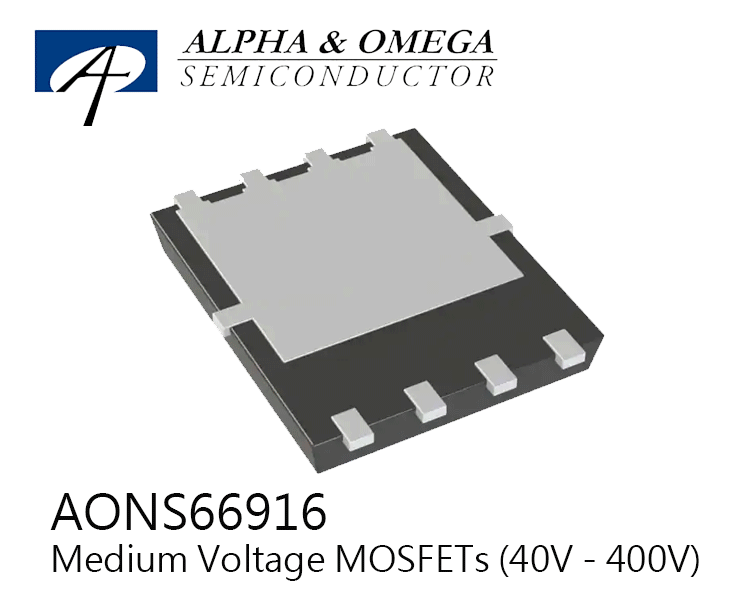

AONS66916 100V N-Channel AlphaSGT™
N-Channel 100 V 100A (Tc) 215W (Tc) Surface Mount 8-DFN (5x6)
| Part Number | FET Type | FET Feature | Technology | BVDSS | Rds On (Max) @ Id, Vgs | ID max | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id | Vgs (Max) | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AONS66916 | N-Channel | - | MOSFET (Metal Oxide) | 100 V | 3.6mOhm @ 20A, 10V | 100 A | 6.2W (Ta), 208W (Tc) | 95 nC @ 10 V | 3.6V @ 250µA | ±20V | -55°C ~ 150°C (TJ) | 5325 pF @ 50 V | 8-PowerSMD, Flat Leads |
-
Datasheet Download on Aug, 2017
