A89331 Three-Phase Sensorless Drivers
Allegro MicroSystems
A89331 : Three Phase Sinusoidal Sensorless Fan Controller
The A89332 three-phase sensorless fan controller helps reduce data-center costs. With power loss brake function, the A89332 gate driver IC can reduce energy consumption by stopping fans that have lost power or are not working properly.
The A89332 is available in a 26-contact 4 mm x 4 mm QFN with exposed pad (suffix EX).
The A89331 three-phase motor driver with integrated MOSFETs offers sensorless control, eliminating the requirement for Hall sensors in server fan applications. The A89331 incorporates a sensorless sinusoidal driver to minimize vibration for high-speed server fans.

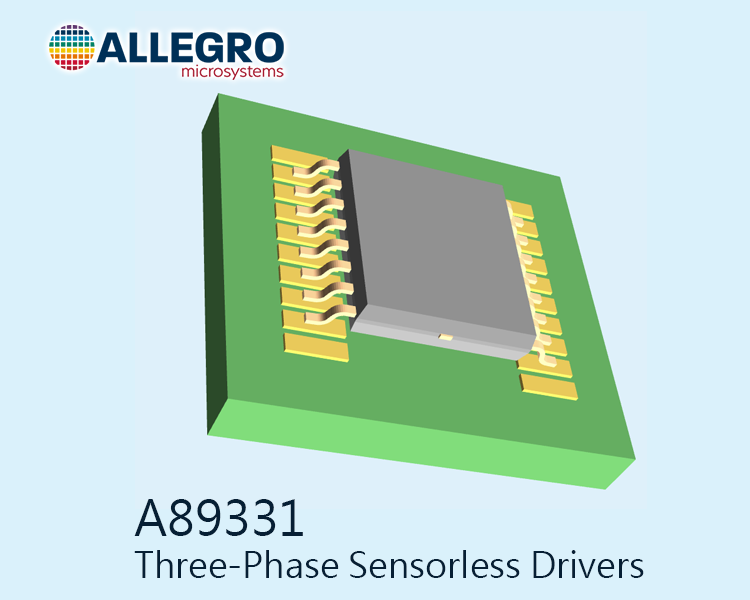

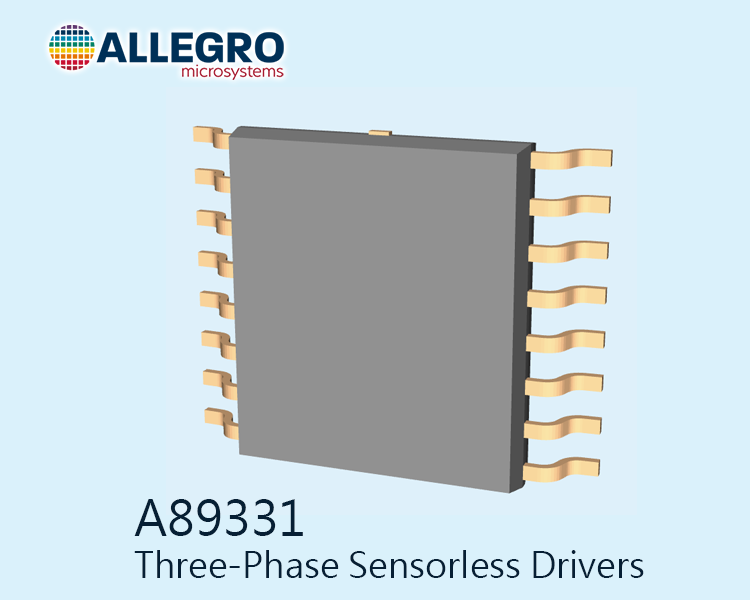

The A89331 is available in a 28-contact 5 mm x 5 mm QFN with an exposed power pad (suffix ET) and a 20-contact TSSOP with an exposed power pad (suffix LP).
As the leading code-free solution for data-center cooling fans, these drivers are integrated with a flexible closed-loop speed control system. An EEPROM is used to tailor the common functions of the fan speed curve to a specific application. This eliminates the requirement for a microprocessor-based system and minimizes programming requirements.
| Part Number | Type | Output Current | Technology | Mounting Style | Number of Outputs | Moisture Sensitive | Applications | Output Voltage | Operating Temperature | Voltage - Supply | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A89331 | 3 Phase | 3A | NMOS | SMD/SMT | 3 Outputs | Yes | Fan Controller | 6.8 V, 7.5 V | -40 °C ~ 105 °C(TA) | 5.5V ~ 50V | 26-contact QFN with exposed thermal pad (suffix EX), 28-contact QFN with exposed thermal pad (suffix ET) |
-
Datasheet Download on Jun, 2022
