ACS37612 Standalone Coreless Differential Current Sensor IC
Allegro MicroSystems
ACS37612: Coreless, High Precision, Hall-Effect Current Sensor IC with Common-Mode Field Rejection and High Bandwidth (240 kHz)

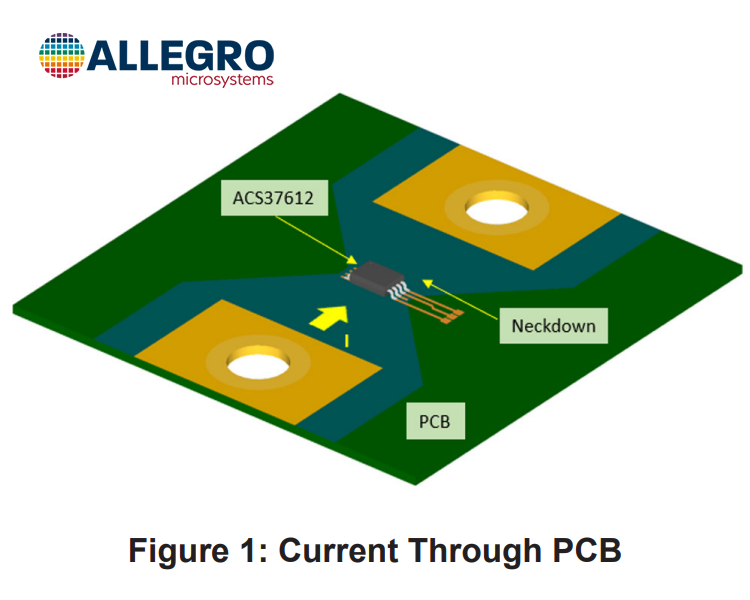

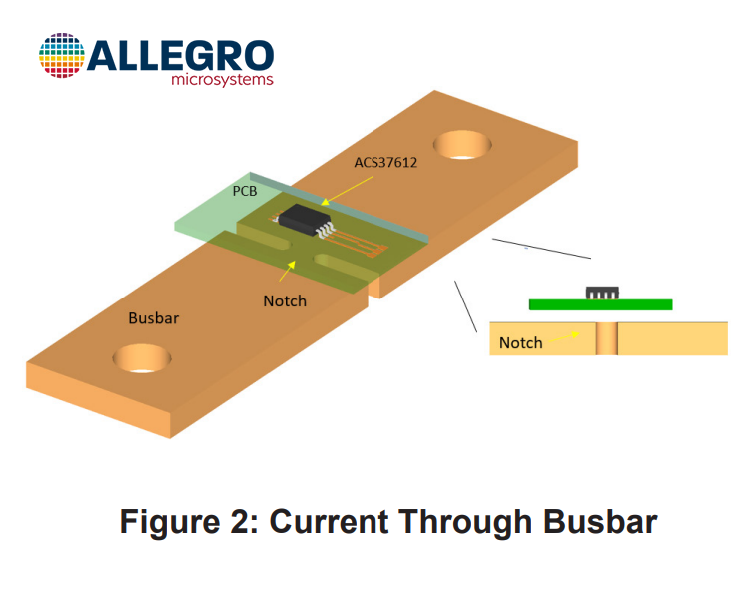

The ACS37612 is a standalone coreless current sensor IC that provides an economical and precise solution for AC and DC current sensing without requiring a magnetic concentrator core or a shield. The ACS37612 measures currents from 200A to >1000A flowing through a PCB or a busbar with a typical accuracy of 1%.
The differential Hall-based sensing topology used to measure the magnetic field virtually eliminates error from common-mode stray magnetic field without the need of a laminated shield required by competing solutions, which reduces the design size and bill of materials (BOM). High isolation is achieved via the no-contact nature of this simple assembly. A 240KHz bandwidth makes it ideal for inverter phase current sensing, load detection and management, power supplies and DC/DC converters where fast switching is required. The high response time enables overcurrent fault detection in safety critical applications. A –40°C to 150°C ambient operating temperature and a stellar ESD rating make it ready for the harsh automotive environment.

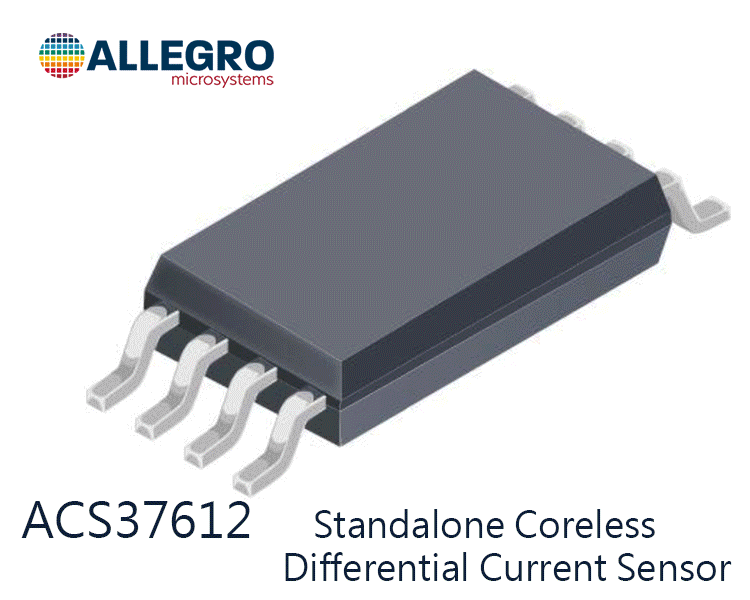

The ACS37612 is offered in a low-profile 8-pin surface mount TSSOP package (thin-shrink small outline package, suffix LU) that is ideal for space-constrained applications, while allowing simple surface mount assembly.
| Part Number | Sensing Current Type | Frequency | Current - Supply | Operating Supply Voltage | Response Time | Sensitivity | Accuracy (%) | Operating Temperature | Supply Voltage | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|
| ACS37612 | DC / AC | 240 kHz | 15mA | 5 V | 1.6µs | 15mV/A | ±1 | -40 °C ~ 150 °C(TA) | 3.3V ~ 5.0V | 8-pin surface mount TSSOP package |
-
Datasheet Download on Dec, 2021
