AOB66916 Medium Voltage MOSFETs (40V - 400V)
Alpha and Omega Semiconductor

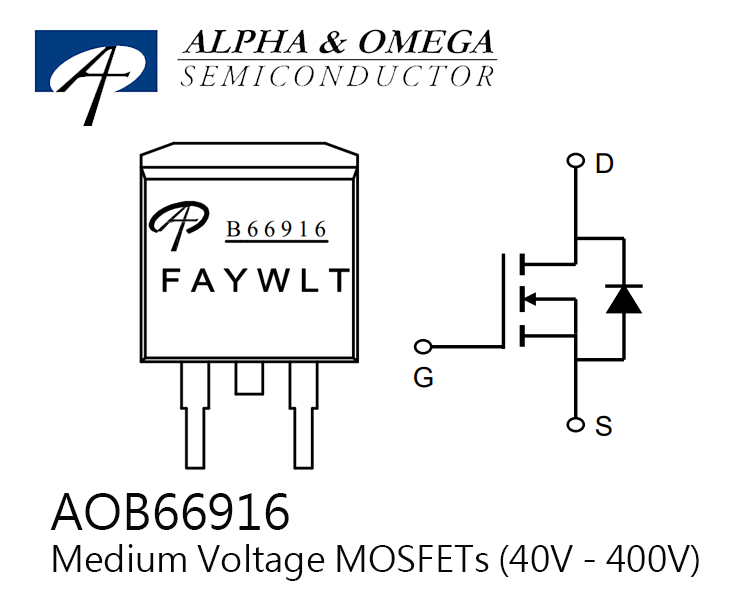

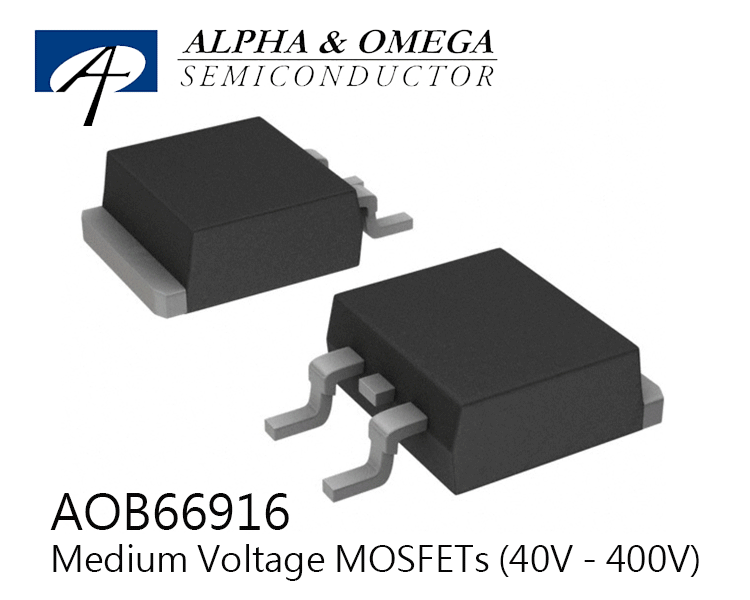

AOB66916 100V N-Channel AlphaSGT™

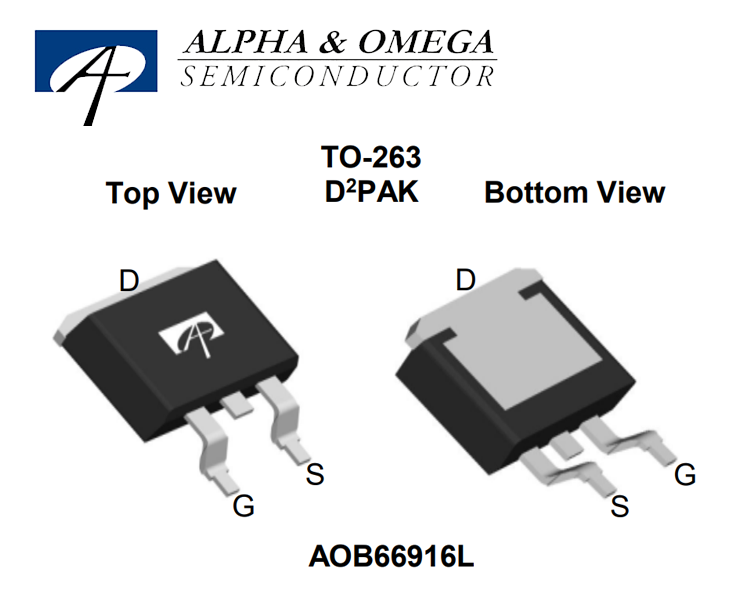

N-Channel 100 V 35.5A (Ta), 120A (Tc) 8.3W (Ta), 277W (Tc) Surface Mount TO-263 (D2Pak)
| Part Number | Configuration | Channel | Material | BVDSS | Rds On (Max) @ Id, Vgs | ID max | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id | Vgs (Max) | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AOB66916 | single | N-Type | Silicon | 100 V | 3.6mOhm @ 20A, 10V | 120 A | 8.3W (Ta), 277W (Tc) | 78 nC @ 10 V | 3.5V @ 250µA | ±20V | -55°C ~ 150°C (TJ) | 6180 pF @ 50 V | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
-
Datasheet Download on Jan, 2019
