AOTL66518 Hot Swap MOSFETs
Alpha and Omega Semiconductor
AOTL66518 : Hot Swap MOSFETs (25V - 150V)，150V N-Channel AlphaSGT™
AOTL66518 is a Silicon MOSFET rated at 150V, 214A, 0.0043Ω Rdson(max) in TOLLA
| Part Number | Configuration | Channel | Material | BVDSS | RDS(ON) typ, max | ID max | PD max | QGS typ, max (nC) | QGD typ, max (nC) | QG Total typ, max (nC) | RthJA max | RthJC max | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

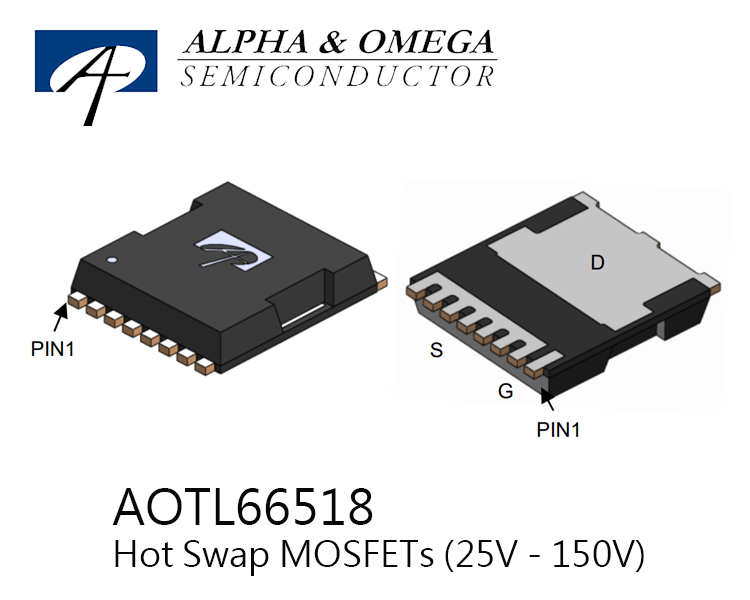

| AOTL66518 | single | N-Type | Silicon | 150 V | 0.0035, 0.0043Ω (At VGS = 10V, TA = 25°C) | 214 A | 500 W | 32, na | 15, na | 80, 115 | 45 c/w | 0.35 c/w | -55°C ~ 175°C (TJ) | 6460 pF @ 75 V | TOLLA (Surface Mount, 8 Pins, Thermalpad: Bottom WxL: 9.90 x 11.68mm) |
-
Datasheet Download on Jun, 2020
