AOTL66912 Hot Swap MOSFETs

Alpha and Omega Semiconductor

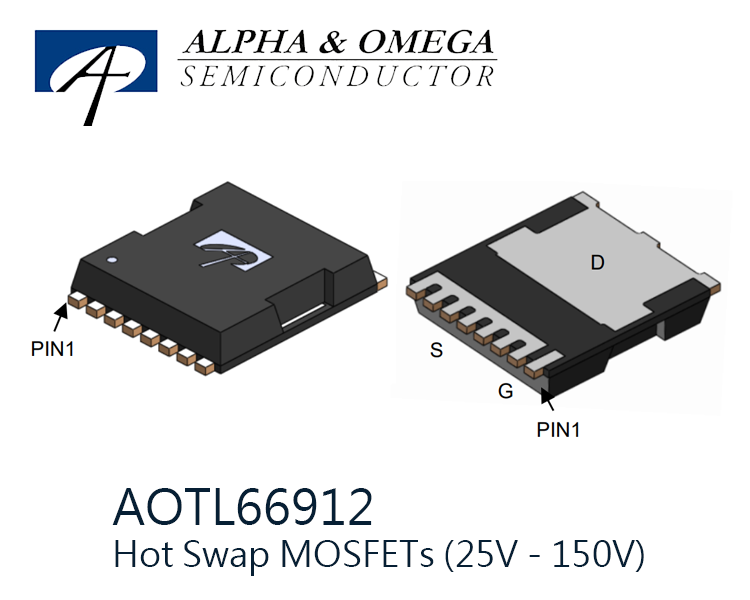

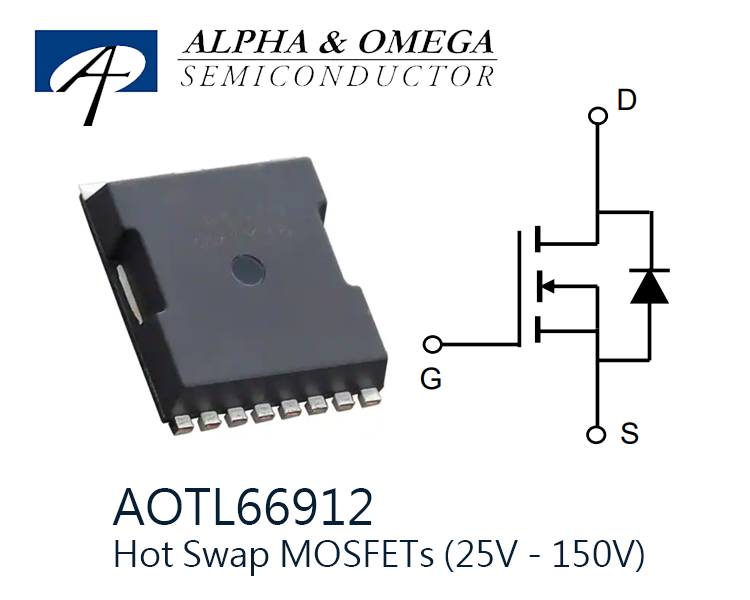

AOTL66912 : Hot Swap MOSFETs (25V - 150V)，100V N-Channel AlphaSGT™

AOTL66912 is a Silicon MOSFET rated at 100V, 380A, 0.0017Ω Rdson(max) in TOLLA

Product Number: AOTL66912

Class: MOSFETs ,Transistors, FETs-MOSFETs, Single-FETs-MOSFETs

Tag: MOSFETs, Hot Swap MOSFETs

Trench Power MOSFET - AlphaSGT™ technology
Combination of low R DS(ON) and wide safe operating area (SOA)
Higher in-rush current enabled for faster start-up and shorter down time
RoHS and Halogen-Free Compliant

Applications ：
Telecom hotswap
Load switch
Solar
Battery management

Part Number Configuration Channel Material BVDSS RDS(ON) typ, max ID max PD max QGS typ, max (nC) QGD typ, max (nC) QG Total typ, max (nC) RthJA max RthJC max Operating Temperature Input Capacitance (Ciss) (Max) @ Vds Package Type
AOTL66912 single N-Type Silicon 100 V 0.0014, 0.0017Ω (At VGS = 10V, TA = 25°C) 380 A 500 W 48, na 31, na 155, 220 45 c/w 0.35 c/w -55°C ~ 175°C (TJ) 12500 pF @ 50 V TOLLA (Surface Mount, 8 Pins, Thermalpad: Bottom WxL: 9.90 x 11.68mm)

See more...AOS

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on Jun, 2019
