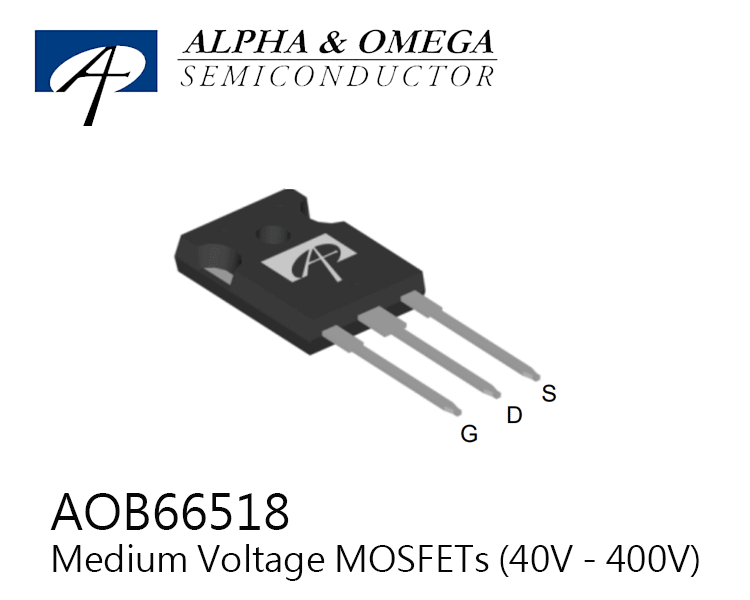

AOB66518 Medium Voltage MOSFETs (40V - 400V)
Alpha and Omega Semiconductor
AOB66518 150V N-Channel AlphaSGT™
N-Channel 150 V 30A (Ta), 120A (Tc) 10W (Ta), 375W (Tc) Surface Mount TO-263 (D2Pak)
| Part Number | Configuration | Channel | Material | BVDSS | Rds On (Max) @ Id, Vgs | ID max | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id | Vgs (Max) | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AOB66518 | single | N-Type | Silicon | 150 V | 5mOhm @ 20A, 10V | 152 A | 10W (Ta), 375W (Tc) | 136 nC @ 10 V | 3.7V @ 250µA | ±20V | -55°C ~ 175°C (TJ) | 6460 pF @ 75 V | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
-
Datasheet Download on Dec, 2020
