AOD464 Medium Voltage MOSFETs (40V - 400V)
Alpha and Omega Semiconductor

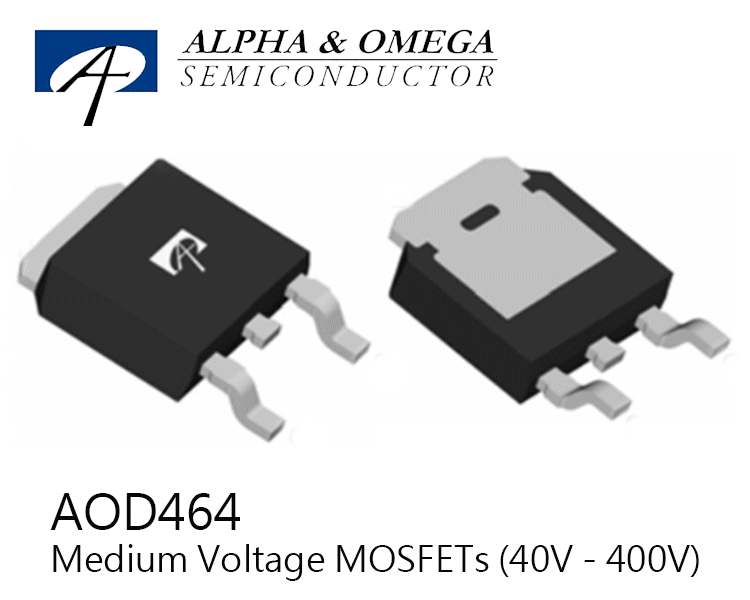

AOD464 N-Channel Enhancement Mode Field Effect Transistor
The AOD464 uses advanced trench technology and design to provide excellent RDS(ON) with low gate
charge. This device is suitable for use in high voltage synchronous rectification , load switching and general purpose applications.
AOD464 is an N-channel MOSFET commonly used in power switching and power management applications. It features low on-resistance, high current handling capability, low gate charge, and fast switching speed. Additionally, it also has transient voltage suppression and electrostatic discharge protection functions, which can improve the reliability of the equipment.
| Part Number | Configuration | Channel | Material | BVDSS | Rds On (Max) @ Id, Vgs | ID max | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id | Vgs (Max) | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

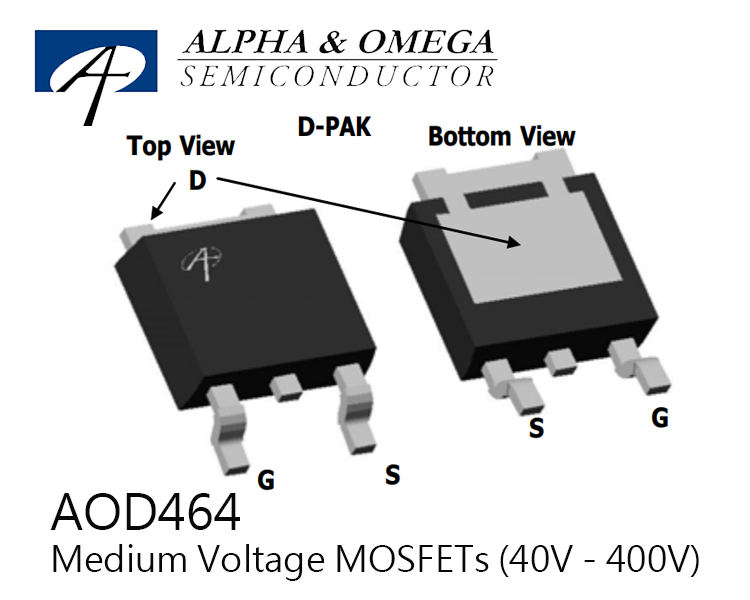

| AOD464 | single | N-Type | Silicon | 105 V | 28mOhm @ 20A, 10V | 40 A | 2.3W (Ta), 100W (Tc) | 46 nC @ 10 V | 4V @ 250µA | ±25V | -55°C ~ 175°C (TJ) | 2445 pF @ 25 V | TO-252-3, DPak (2 Leads + Tab), SC-63 |
-
Datasheet Download on Aug, 2009
