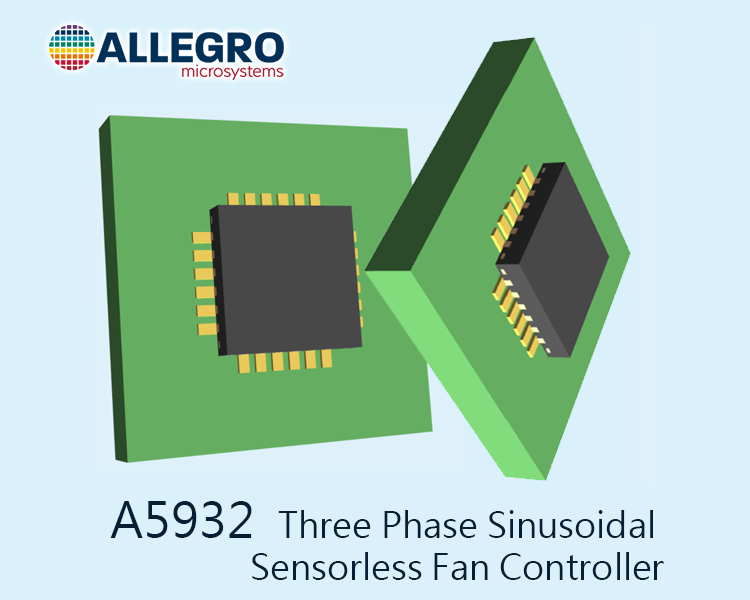

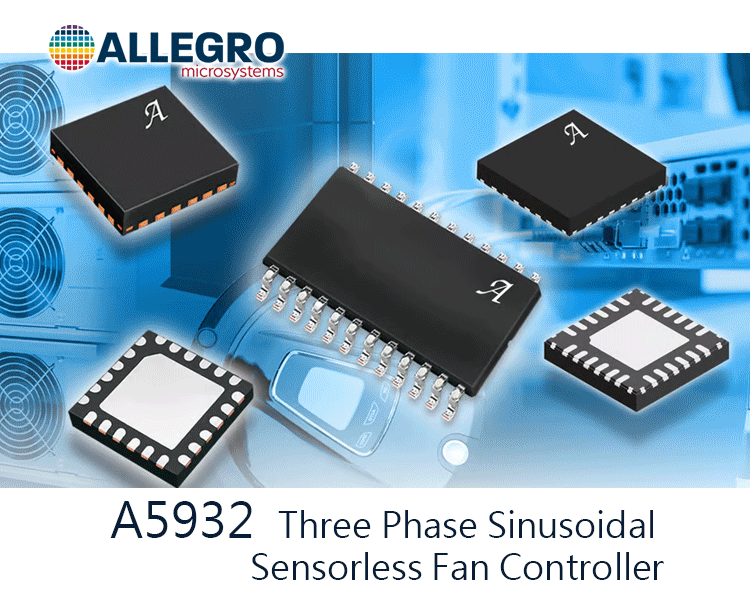

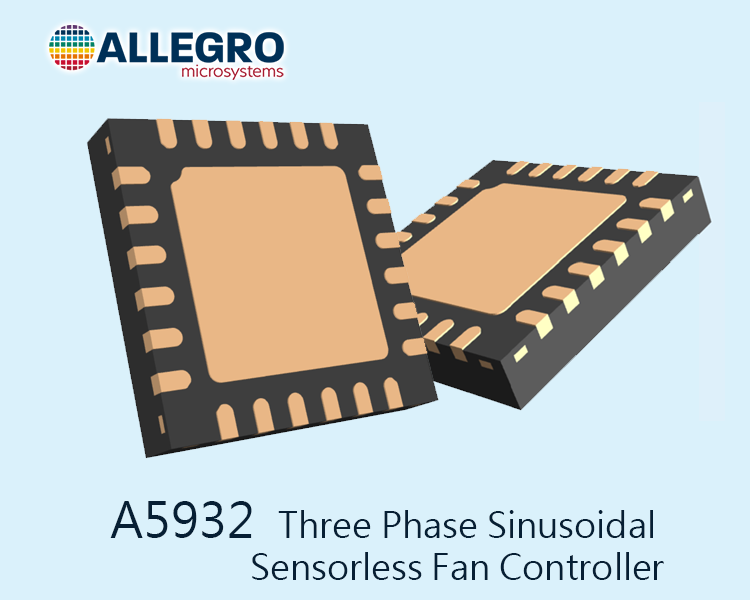

A5932 Three Phase Sinusoidal Sensorless Fan Controller
Allegro MicroSystems
A5932 : Three Phase Sinusoidal Sensorless Fan Controller
The A5931 is a three phase sensorless BLDC fan driver IC that incorporates sinusoidal drive to minimize audible noise and vibration.
The A5931-3 is the latest in the family with a new feature that allows user to adjust deceleration speed from Force Open Loop to Close Loop.
A flexible closed-loop speed control system is integrated into the IC. This eliminates the requirement for a microprocessor-based system and minimizes programming requirements.
The A5931 devices are available in both commercial and automotive grade.
| Part Number | Type | Output Current | Technology | Mounting Style | Operating Frequency | Moisture Sensitive | Applications | Output Voltage | Operating Temperature | Voltage - Supply | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A5932 | 3 Phase | 3A | NMOS | SMD/SMT | 24.4 kHz | Yes | Fan Controller | 6.8 V, 7.5 V | -40 °C ~ 105 °C(TA) | 5.5V ~ 50V | 24-lead TSSOP with exposed thermal pad (LP package), 24-contact QFN wettable flank with exposed thermal pad 4×4mm × 0.75mm(ES package, -J option) 24-contact QFN with exposed thermal pad 4×4mm × 0.75mm(ES package) |
-
Datasheet Download on Jun, 2022
