AIM703S60C1 Intelligent Power Module

Alpha and Omega Semiconductor

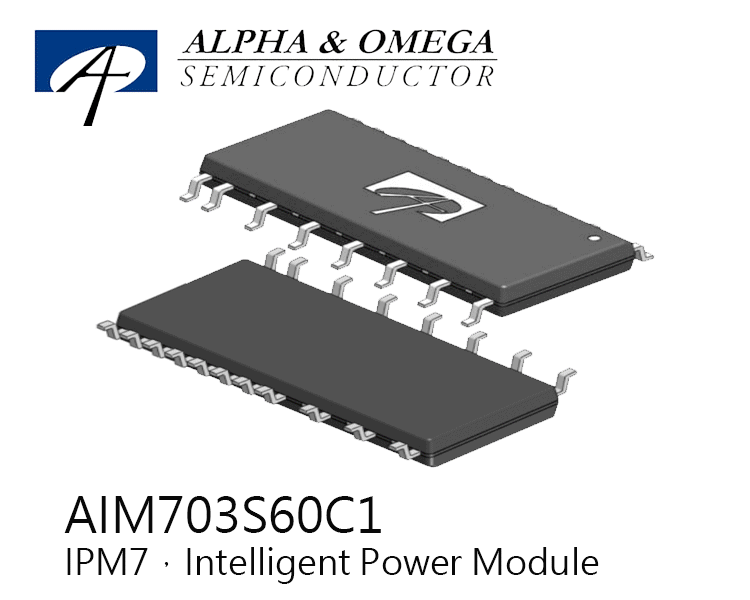

AIM703S60C1 ：IPM7，Intelligent Power Module

The IPM7 series product integrated with advanced super junction MOSFETs is designed for motor drive and robust high voltage gate driving ICs in a new ultra-compact surface mountable package. This series is optimized for low-power BLDC motor drives system such as fan motors in home appliances that require highly compact size. It also features fast and precise over-temperature and over-current protection.

Product Number: AIM703S60C1

Class: Dual-In-Line Package Intelligent Power Module, Intelligent Power Module , IPM7 , IPMs

Tag: Intelligent Power Module, IPM7 , IPMs

600V, RDS(on) = 3.4Ω (Max)
Advanced MOSFET technology (αMOS5 TM) for motor drives
Low loss and EMI

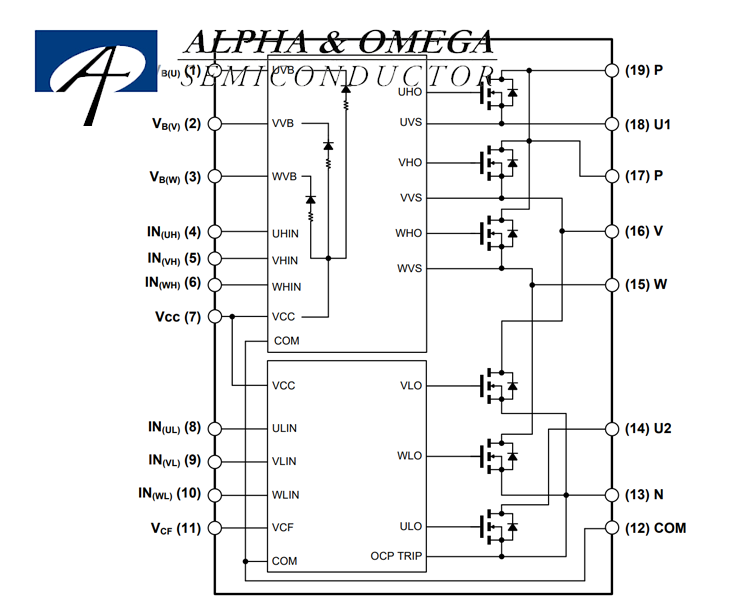

3-phase Inverter module including HVIC drivers
Wide input interface (3-18V), Schmitt trigger receiver circuit (Active High)
Built-in bootstrap diodes with integrated current-limiting resistor
Control supply under-voltage lockout protection (UVLO)
Over-temperature (OT) protection
Over-current protection (OCP)

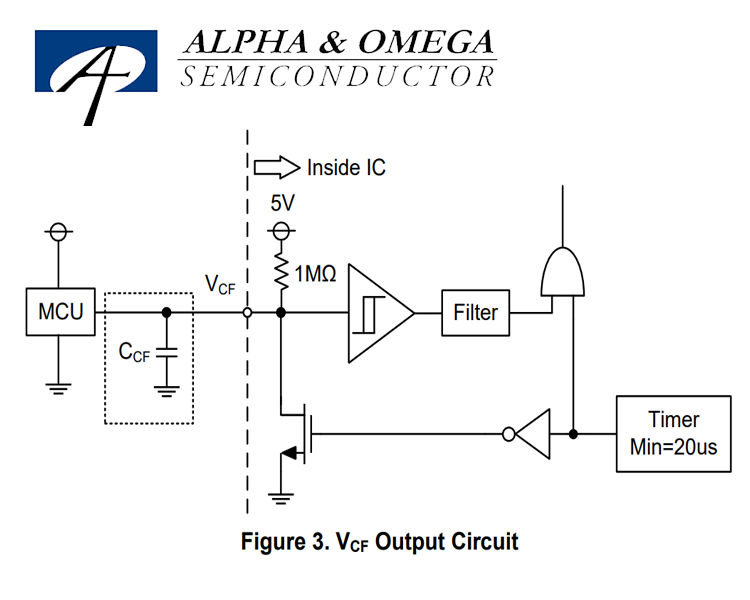

Controllable fault out signal (VCF) corresponding to OC, UV, OT fault
Isolation ratings of 1500Vrms/min

Applications ：
AC 100-240Vrms class low power motor drives
Fan motors

Part Number Configuration Function Input Logic Rated Voltage RDS(on) Max Emitter Configuration Operating Temperature Isolation ratings Package Type
AIM703S60C1 IPM7 3-Phase MOSFET IPM Active High 600V 3Ω Common -40°C to 150°C(TA) 2000Vrms/min IPM-7

See more...AOS

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on Jul, 2021
