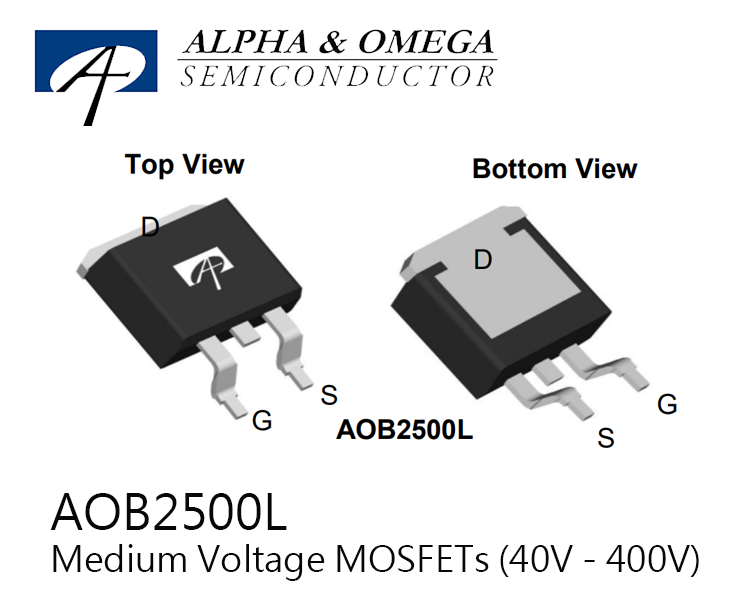

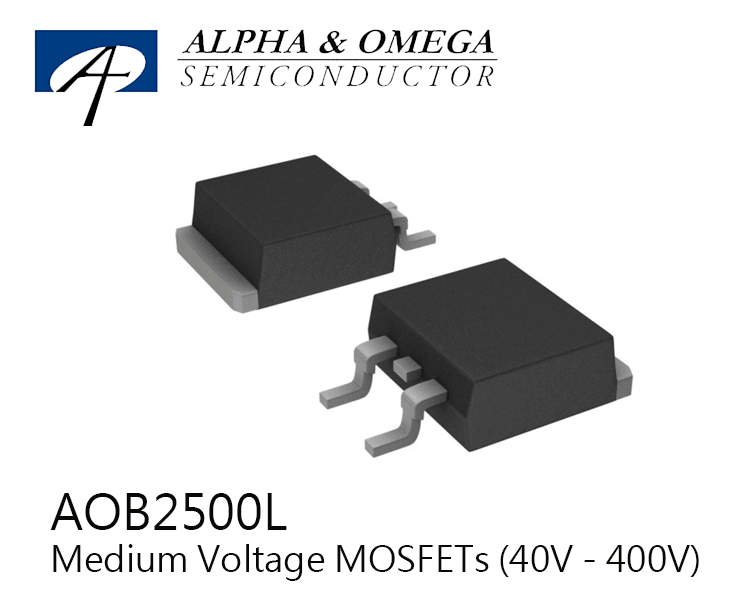

AOB2500L Medium Voltage MOSFETs
Alpha and Omega Semiconductor
AOB2500L : Medium Voltage MOSFETs (40V - 400V)，150V N-Channel MOSFET
The AOT2500L/AOB2500L uses Trench MOSFET 150V technology that is uniquely optimized to provide the most efficient high frequency switching performance. Both conduction and switching power losses are minimized due to an extremely low combination of RDS(ON), Ciss and Coss. This device is ideal for boost converters and synchronous rectifiers for consumer, telecom, industrial power supplies and LED backlighting.
| Part Number | Configuration | Channel | Material | BVDSS | Rds On (Max) @ Id, Vgs | ID max | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs | Vgs(th) (Max) @ Id | Vgs (Max) | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AOB2500L | single | N-Type | Silicon | 150 V | 6.2mOhm @ 20A, 10V | 152 A | 2.1W (Ta), 375W (Tc) | 136 nC @ 10 V | 3.5V @ 250µA | ±20V | -55°C ~ 175°C (TJ) | 6460 pF @ 75 V | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
-
Datasheet Download on Jul, 2013
