A6263 Protected LED Array Driver
Allegro MicroSystems
A6263-1 : Protected LED Array Driver

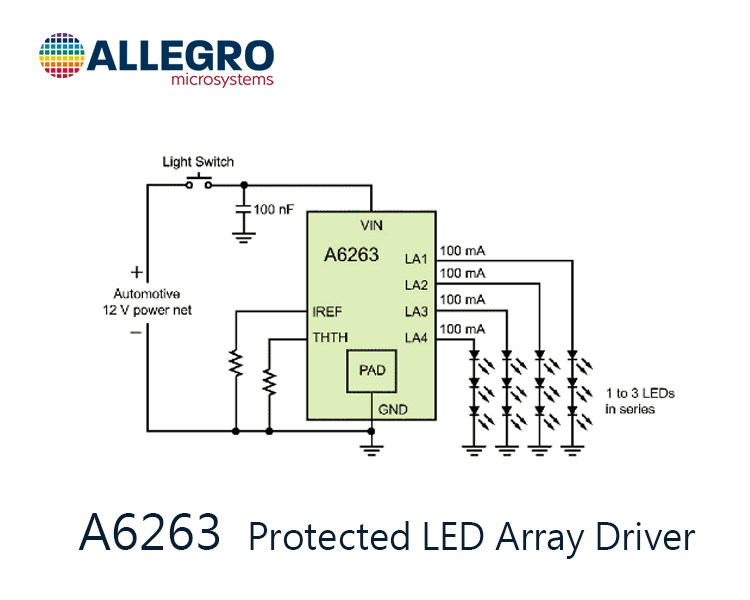

The A6263 is a linear, programmable current regulator providing up to 100 mA from each of 4 outputs to drive arrays of high brightness LEDs. Outputs can be connected in parallel or left unused, as required. The regulated LED current from each output, accurate to 5%, is set by a single reference resistor. Current matching in each string is better than 10% without the use of ballast resistors. Driving LEDs with constant current ensures safe operation with maximum possible light output.
The IC provides protection against the following common faults:
• LED string shorted to GND
• Single or multiple LED short
• LED string open
• IC pin open/short
• Overtemperature
If one LED string is open or shorted to ground, the offending string is disabled, while other LED strings continue to work.
A temperature monitor is included to reduce the LED drive current if the chip temperature exceeds a thermal threshold. If necessary, this thermal derating threshold can be adjusted or disabled.

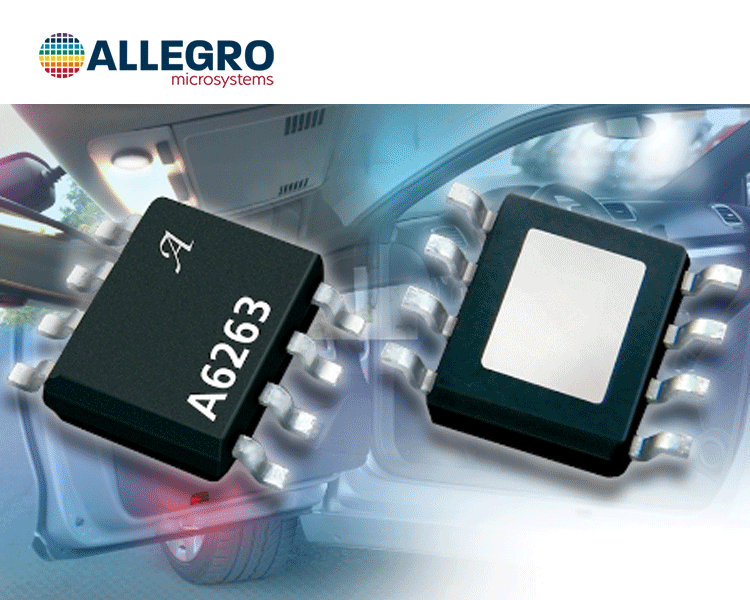

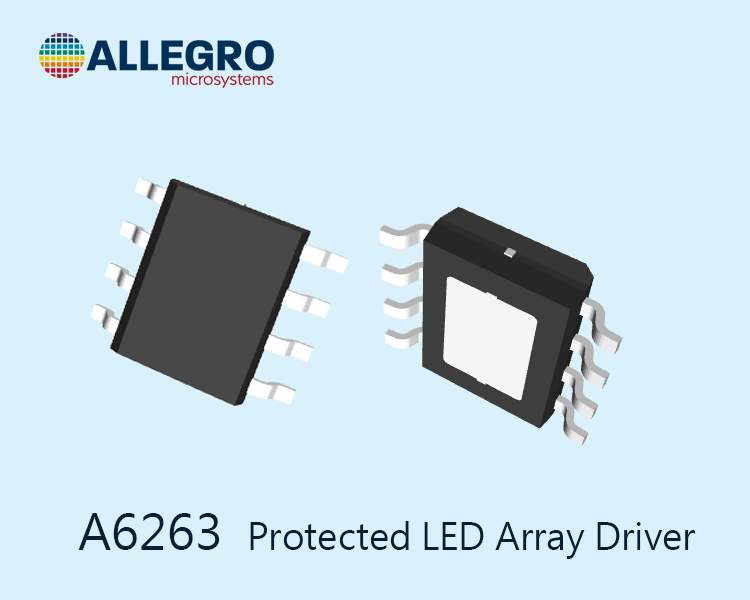

The device comes in an 8-pin SOIC ( package LJ ) with exposed pad for enhanced thermal dissipation. It is lead (Pb) free, with 100% matte tin leadframe plating.
| Part Number | Type | Output Current | Topology | Mounting Style | Operating Frequency | Dimming | Applications | Maximum Frequency | Operating Temperature | Voltage - Supply | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A6263 | DC DC Regulato | 400 mA | Step-Down (Buck) | Surface Mount | - | PWM | Automotive | 2 kHz | -40 °C ~ 125 °C(TA) | 6V ~ 50V | 8-SOIC (0.154, 3.90mm Width) Exposed Pad |
-
Datasheet Download on Jun, 2022
