AHV85111 Isolated GaNFET Gate Driver
Allegro MicroSystems

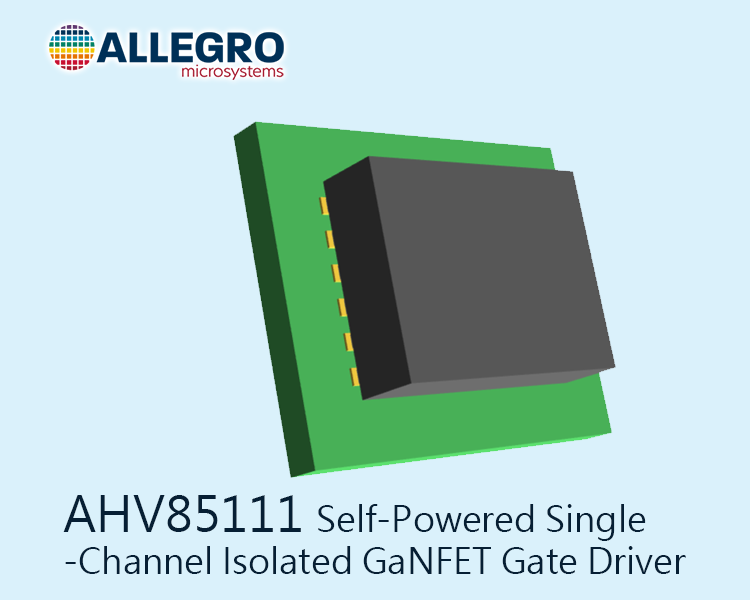

AHV85111: Self-Powered Single-Channel Isolated GaNFET Gate Driver with Regulated Bipolar Output Drive

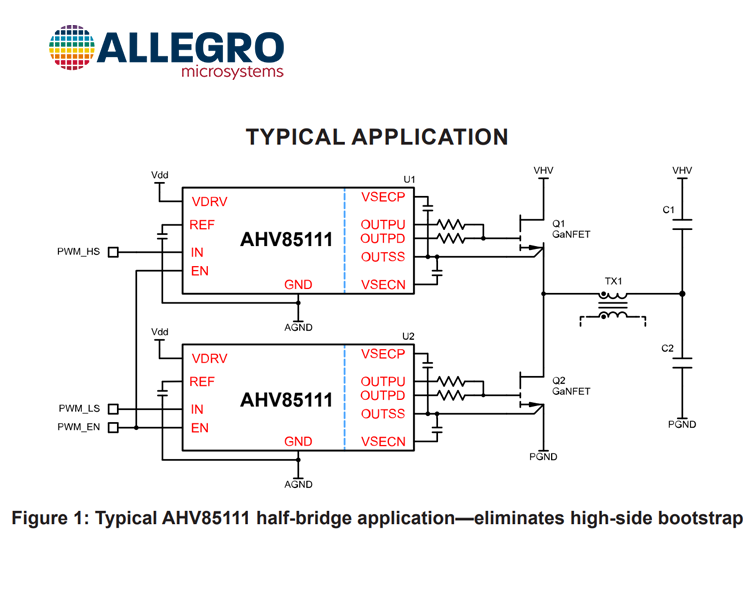

The AHV85111 isolated gate driver is optimized for driving GaN FETs in multiple applications. An isolated dual positive/ negative output bias supply is integrated into the driver device, eliminating external gate drive auxiliary bias supply or high-side bootstrap. The bipolar output rails with adjustable and regulated positive rail improves dv/dt immunity, greatly simplifies the system design, and reduces EMI through reduced total common mode (CM) capacitance. It also allows the driving of a floating switch in any location in a switching power topology.
| Part Number | Isolation | Working Voltage | Polarity | Channels | Switch | Availability | Package | Separate drive output pins | Operating Temperature | Operating Supply Voltage | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| AHV85111 | 5KV | 630 | bipolar | Single | GaN | available | NH | pull-up (2.8 Ω) / pull-down (1.0 Ω) | -40 °C ~ 125 °C(TJ) | 10.5 V ~13.2 V | 10 × 7.66 × 2.53 mm 12-pin low-profile surface mount |
-
Datasheet Download on Aug, 2022
