AONS66612 Medium Voltage MOSFETs (40V - 400V)

Alpha and Omega Semiconductor

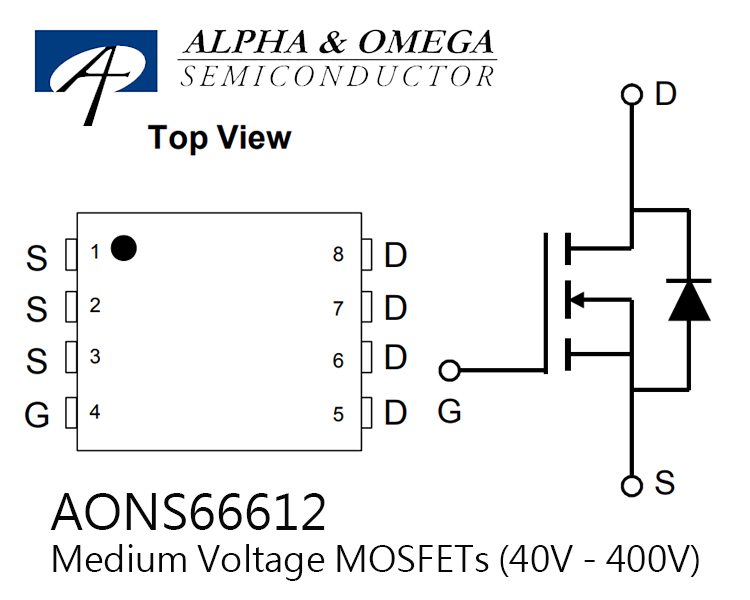

AONS66612 60V N-Channel AlphaSGT™

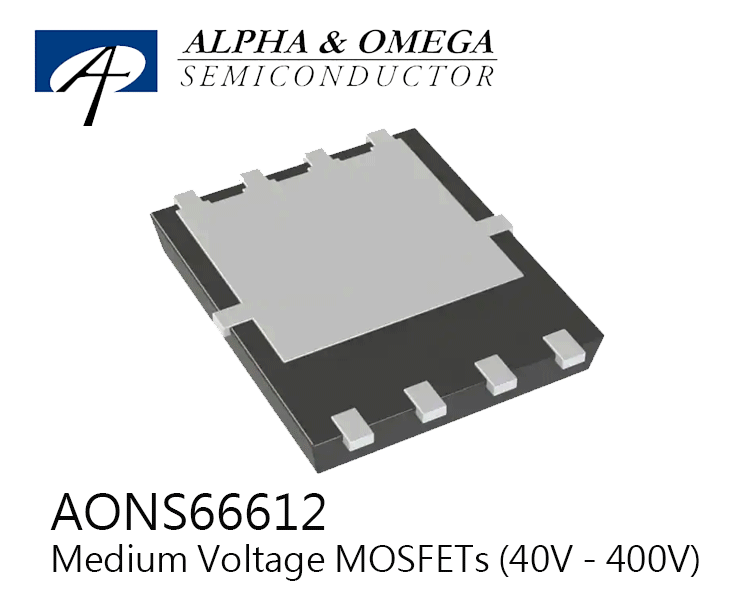

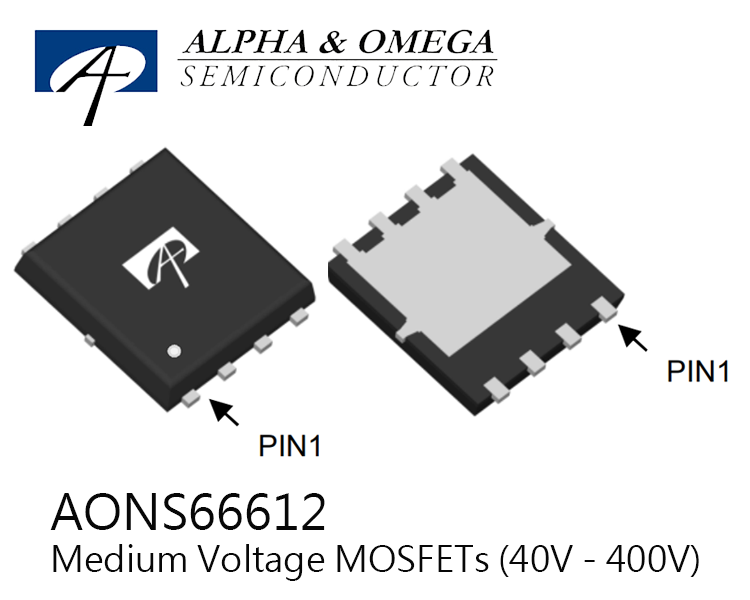

N-Channel 60 V 46A (Ta), 100A (Tc) 6.2W (Ta), 208W (Tc) Surface Mount 8-DFN (5x6)

Product Number: AONS66612

Class: MOSFETs ,Transistors, FETs-MOSFETs, Single-FETs-MOSFETs

Tag: MOSFETs, Single-FETs-MOSFETs

Trench Power AlphaSGTTM technology
Low RDS(ON)
Low Gate Charge
Optimized for Fast-Switching Applications
RoHS and Halogen-Free Compliant

Applications ：
Synchronous Rectification in DC/DC and AC/DC Converters
Industrial and Motor Drive applications

Part Number FET Type FET Feature Technology BVDSS Rds On (Max) @ Id, Vgs ID max Power Dissipation (Max) Gate Charge (Qg) (Max) @ Vgs Vgs(th) (Max) @ Id Vgs (Max) Operating Temperature Input Capacitance (Ciss) (Max) @ Vds Package Type
AONS66612 N-Channel - MOSFET (Metal Oxide) 60 V 1.65mOhm @ 20A, 10V 100 A 6.2W (Ta), 208W (Tc) 110 nC @ 10 V 3.5V @ 250µA ±20V -55°C ~ 150°C (TJ) 5300 pF @ 30 V 8-PowerSMD, Flat Leads

See more...AOS

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on Apr, 2018
