AOK065V65X2 Silicon Carbide (SiC) MOSFETs
Alpha and Omega Semiconductor
AOK065V65X2 ：650V αSiC Silicon Carbide Power MOSFET
αSiC MOSFETs are third-generation power semiconductors enabling the highest performance optimized for many high-efficiency applications due to the superior switching speed, ultra-low Qrr, low DC losses at high temperature, and rugged UIS capabilities. Target applications include industrial motor drives, solar inverters, high-power SMPS, and eV charging equipment. Our fully AECQ-101 qualified Automotive "Q" series is designed for ease of use in eV onboard chargers (OBC) and inverters.
| Part Number | FET Type | Technology | Drain to Source Voltage (Vdss) | Current - Continuous Drain (Id) @ 25°C | Drive Voltage (Max Rds On, Min Rds On) | Rds On (Max) @ Id, Vgs | Vgs(th) (Max) @ Id | Gate Charge (Qg) (Max) @ Vgs | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Operating Temperature | Power Dissipation (Max) | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

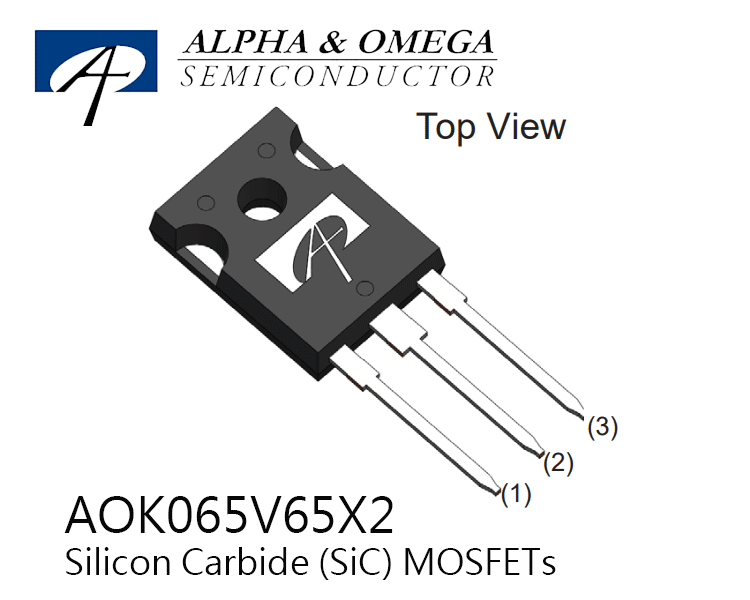

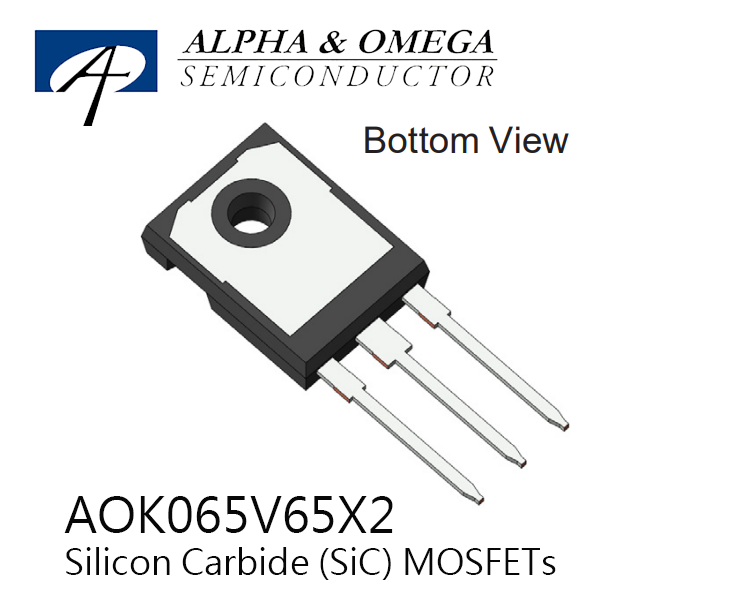

| AOK065V65X2 | N-Channel | 4 SiC (Silicon Carbide Junction Transistor) | 650V | 40.3A (Tc) | 15V | 85mOhm @ 10A, 15V | 3.5V @ 10mA | 58.8 nC @ 15 V | +15V, -5V | 1762 pF @ 400 V | -55°C ~ 175°C (TJ) | 187.5W (Ta) | TO-247-3 |
-
Datasheet Download on Mar, 2022
