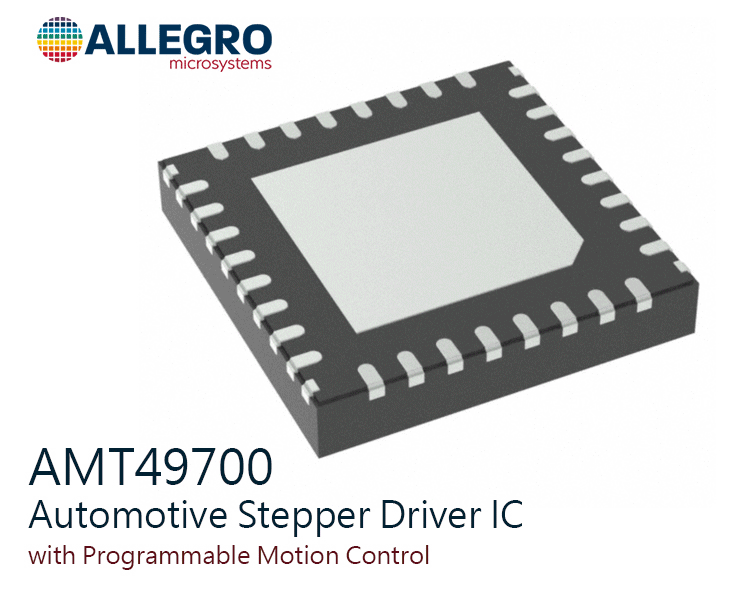

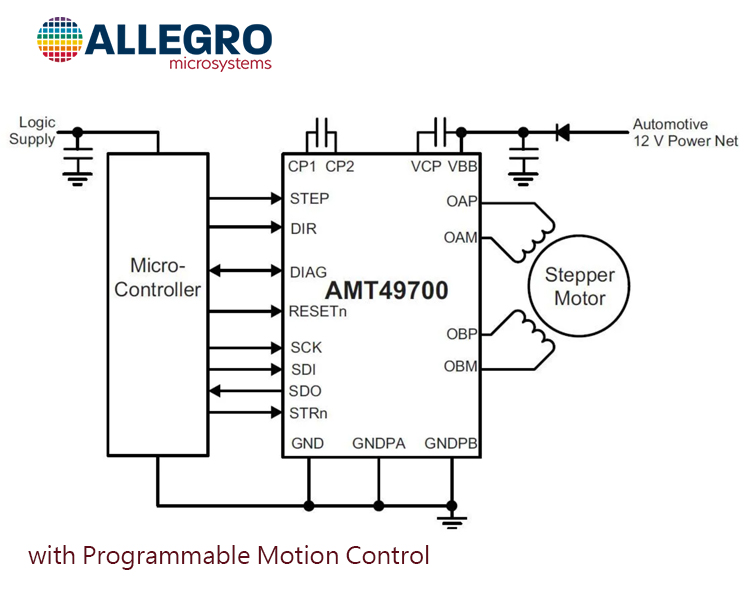

AMT49700汽車步進馬達驅動器IC
具可編程動作控制
Allegro MicroSystems
功能: 控制器 - 整流、方向管理
Allegro的AMT49700是一款靈活的步進馬達驅動器,具有整合式相位電流控制、內建轉換器和簡單的動作控制。作為單晶片解決方案,此產品設計用於在全步、半步、1/4步、1/8步及1/16步模式下,以高達28V的電壓運行雙極步進馬達。
AMT49700能減少微處理器開銷,是一款獨特的動作曲線控制器,可提供可編程馬達加速和減速,這對於具有多個步進馬達的系統特別有用。此外,亦提供整合式電流感測,也可減少外部元件的數量。
AMT49700非常適合高溫應用,例如前照燈調平/彎曲和引擎管理動作控制,也適用於其他汽車步進應用,例如HVAC 閥瓣和閥門,因此用途廣泛。
穩流器會以固定頻率PW 操作,並使用自適性混合電流衰減模式來降低馬達噪音並提升步進準確性。馬達各相位的電流會透過DMOS全橋以同步整流方式進行控制,藉此改善功率耗散。內部電路和計時器可在高低側驅動切換期間預防交叉導通和擊穿。
輸出具有短路保護功能,並包含低負載電流偵測功能。晶片級保護包括高溫警告、過熱關閉、過電壓鎖定和欠壓鎖定。

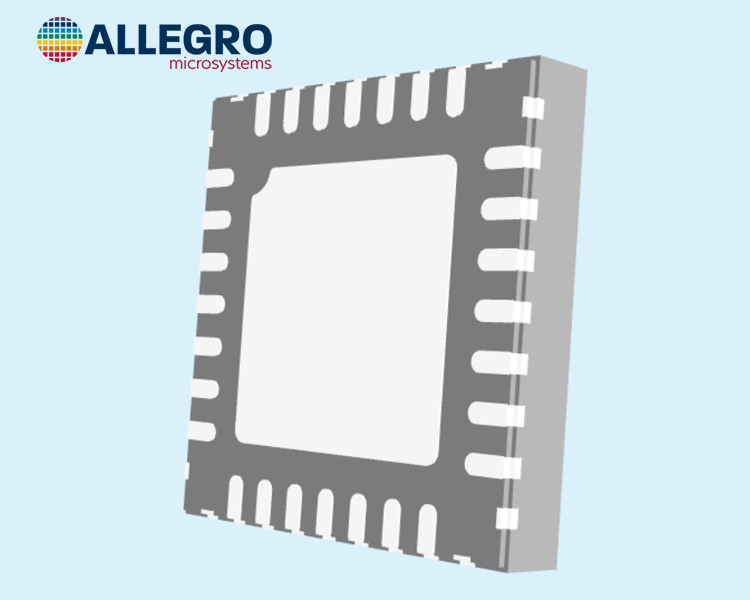

AMT49700採用32端子5mmx5mm QFN封裝,具有外露散熱墊片 (封裝類型ET)。
Part Number | 輸出配置 | 介面 | 技術 | 步進解析度 | 電流 - 輸出 | 電壓 - 電源 | 工作溫度 | 安裝類型 | 封裝/外殼 | 元件封裝 |
---|---|---|---|---|---|---|---|---|---|---|
AMT49700KETJTR | 半橋 (4) | 串行 | 功率 MOSFET | 1、1/2、1/4、1/8、1/16 | 1.6A | 0V ~ 42V | -40°C ~ 125°C | 表面黏著、可沾濕測邊 | 32-VFQFN 裸焊盤 | 32-lead QFN (5x5) |
-
Datasheet Download on Jun, 2022
