A1335: Precision Hall-Effect Angle Sensor IC with I 2C, SPI, and SENT Interfaces
The A1335 is a 360° contactless high-resolution programmable magnetic angle position sensor IC. It is designed for digital systems and is capable of communicating via an I2C, SPI, or SENT interface.
This system-on-chip (SoC) architecture includes a front end based on Circular Vertical Hall (CVH) technology, programmable microprocessor-based signal processing, and features an interface capable of supporting I2C, SPI, and SENT.
Besides providing full-turn angular measurement, the A1335 also provides scaling for angle measurement applications less than 360°. It includes on-chip EEPROM technology, capable of supporting up to 100read/write cycles, for flexible programming of calibration parameters.
Digital signal processing functions, including temperature

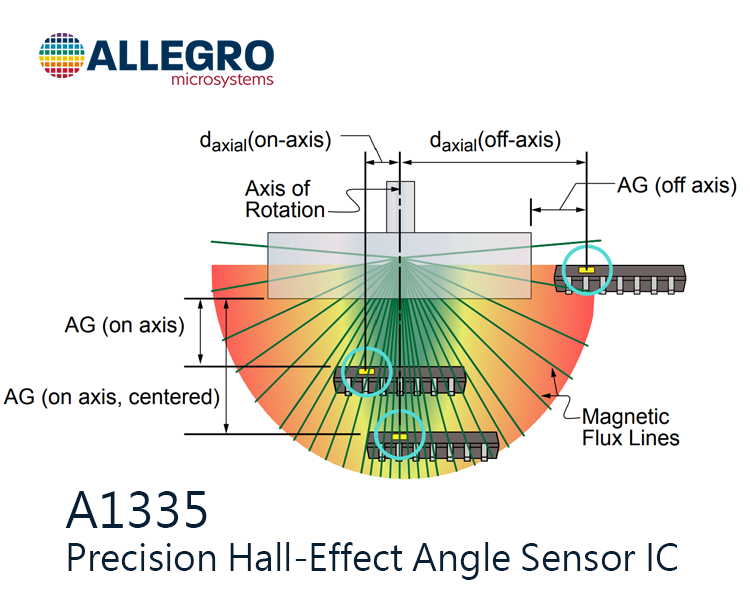

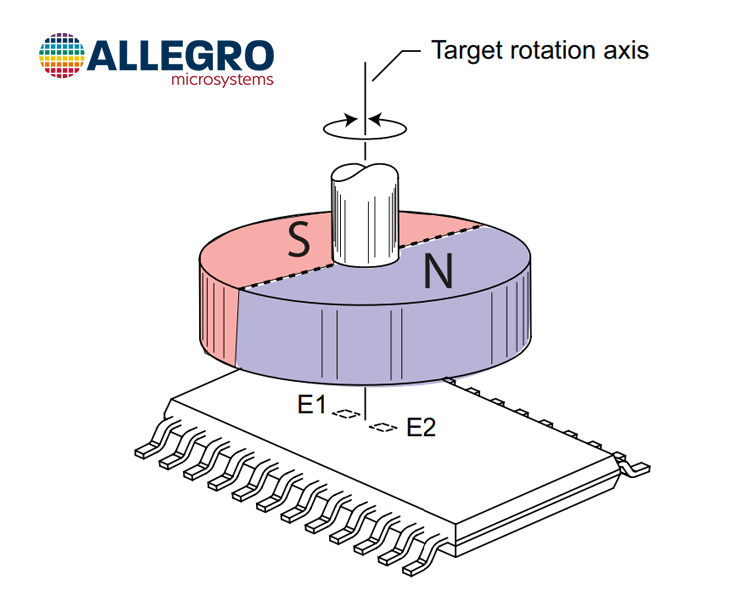

compensation and gain/offset trim, as well as advanced output linearization algorithms, provide an extremely accurate and linear output for both end-of-shaft applications as well as off-axis applications.
The A1335 is ideal for automotive applications requiring highspeed 360° angle measurements, such as: electronic power steering (EPS), transmission, torsion bar, and other systems that require accurate measurement of angles. The A1335
linearization schemes were designed with challenging off-axis applications in mind.

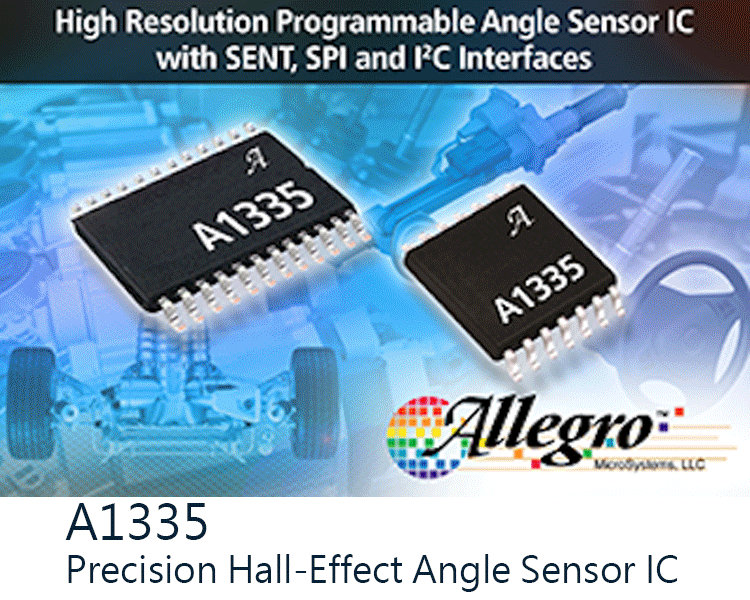

The A1335 is available as a single die in a 14-pin TSSOP, or dual die in a 24-pin TSSOP. Both packages are lead (Pb) free with 100% matte-tin leadframe plating.
Part Number | Output | Output Signal | Rotation Angle | Mounting Type | Termination Style | Actuator Type | Operating Supply Current | Moisture Sensitive | Operating Temperature | Voltage - Supply | Package Type |
---|---|---|---|---|---|---|---|---|---|---|---|
A1335 | I²C, SENT, SPI | - | 0° ~ 360° | Surface Mount | Gull Wing | External Magnet, Not Included | 17 mA | Yes | -40 °C ~ 150 °C(TA) | 4.5V ~ 5.5V | Single SoC, 14-pin TSSOP (Suffix LE) / Dual Independent SoCs, 24-pin TSSOP (suffix LE) |
-
Datasheet Download on Aug, 2022
