用於PWM控制的

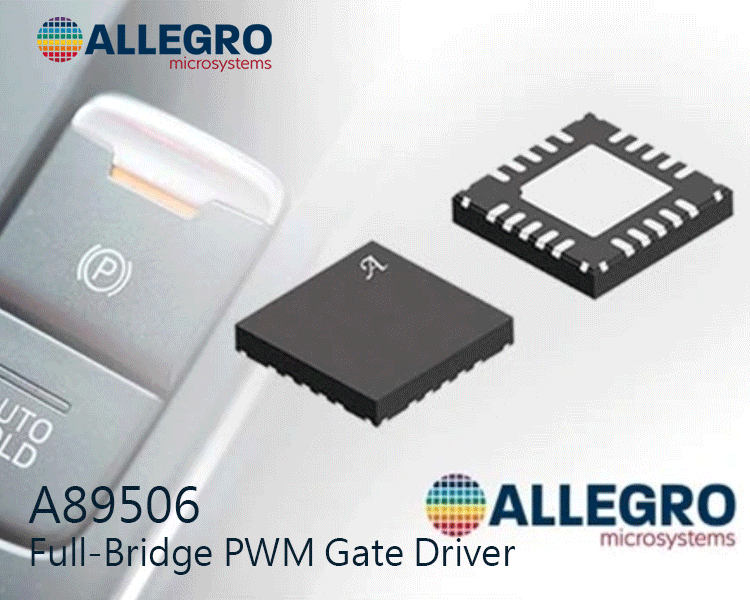

A89506全橋閘極驅動器
Allegro MicroSystems
A89506具有故障輸出,可在發生橋接器短路或過流事件時通知微處理器
Allegro的A89506全橋閘極驅動器設計用於DC馬達的脈寬調變 (PWM) 控制。它們能夠在50V電壓下運作,為所有N通道外部MOSFET橋接器提供閘極驅動,以降低EMI。發生橋接器短路或過流事件時,故障輸出會通知微處理器。

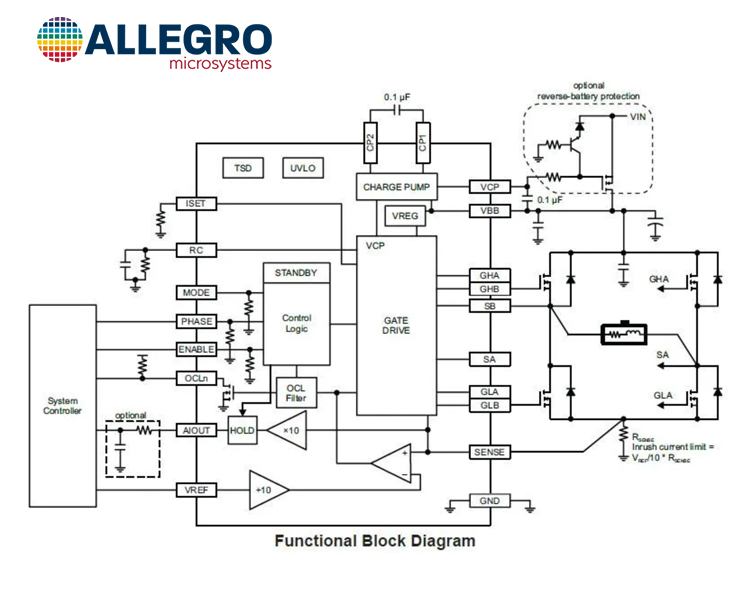

輸入端子會透過外部施加的PWM控制訊號,控制DC馬達的速度和方向。內部同步整流控制電路可降低PWM作業期間的功率耗散。內部電路保護包括VDS保護、遲滯熱關斷、VBB欠壓監測、交叉電流保護。
A89506可有效替代繼電器和閉合系統,還可用於驅動傳統混合動力電動車 (HEV)、電動車 (EV) 中的DC馬達及致動器。它們非常適用於門窗致動器、電動車充電器鎖、電子手煞車、折疊後照鏡等應用。它們的固態設計也讓它們非常適合內建有刷DC馬達的電池供電式應用,例如大樓自動化和機器人技術,能提高可靠性及電池續航力,同時促進設計覆蓋區的小型化。
Part Number | 驅動配置 | 通道類型 | 驅動器數 | 閘類型 | 邏輯電壓-VIL、VIH | 輸入類型 | 工作溫度 | 安裝類型 | 封裝/外殼 | 元件封裝 |
---|---|---|---|---|---|---|---|---|---|---|

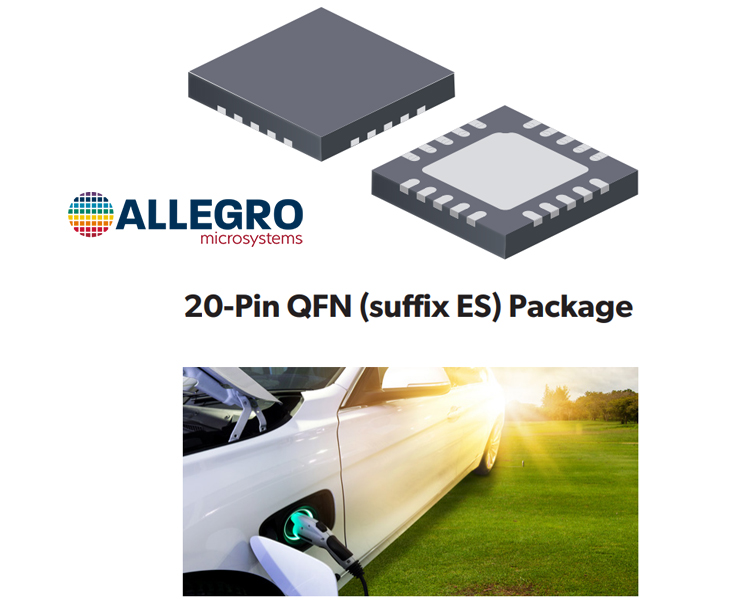

A89506KLPTR | 全橋 | 同步 | 4 | N 通道 MOSFET | 0.8V、2V | 非反相 | -40°C ~ 135°C (TA) | 表面黏著式 | 20-WFQFN 裸焊盤 | 20-lead QFN-EP (4x4) |
