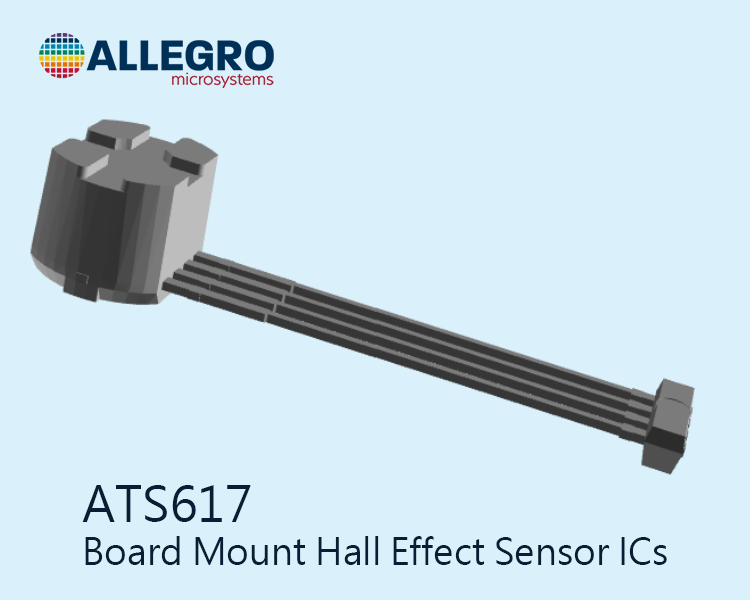

ATS617 Differential Hall Effect Gear Tooth Sensor IC

Allegro MicroSystems

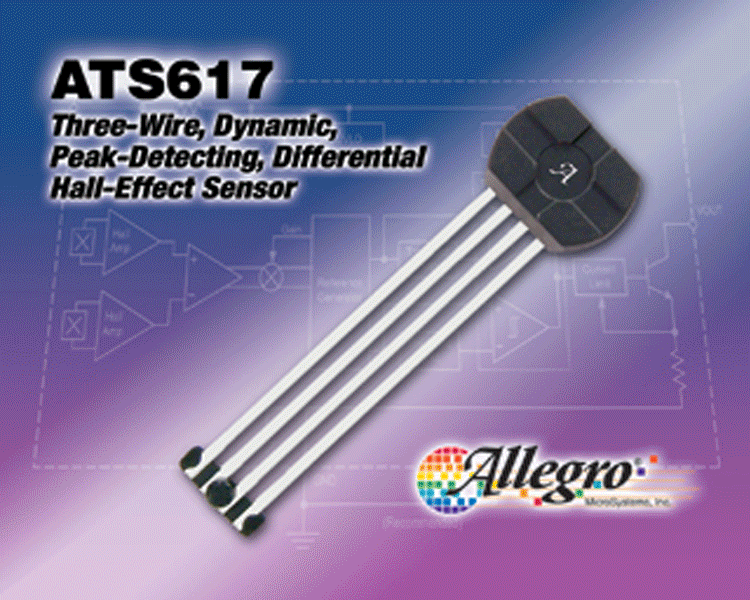

ATS617 : Dynamic, Self-Calibrating, Peak-Detecting, Differential Hall Effect Gear Tooth Sensor IC

The ATS617 gear-tooth sensor IC is a peak-detecting device that uses automatic gain control and an integrated capacitor to provide extremely accurate gear edge detection down to low operating speeds. Each device consists of a high-temperature plastic shell that holds together a samarium-cobalt pellet, a pole piece, and a differential open-collector Hall IC that has been optimized to the magnetic circuit. This small package can be assembled simply and used in conjunction with a wide variety of gear shapes and sizes.

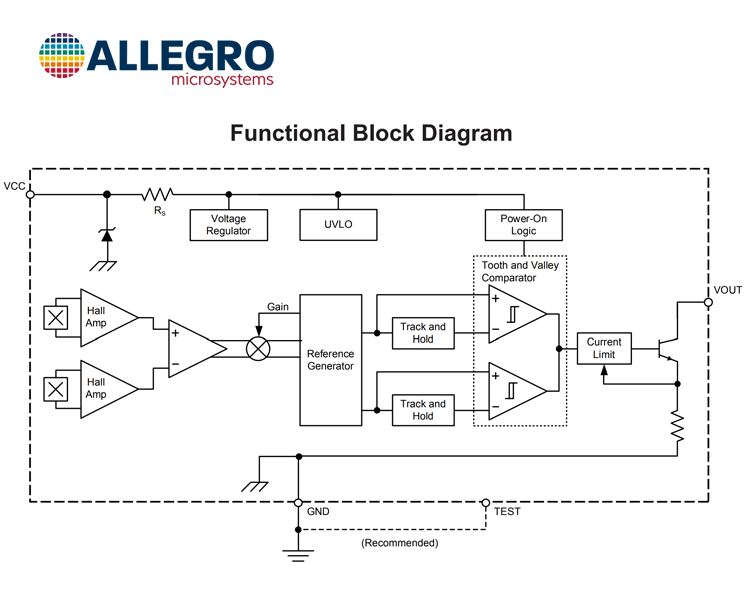

The technology used for this device is Hall-effect based. The device incorporates a dual-element Hall IC that switches in response to differential magnetic signals created by ferromagnetic targets. The sophisticated processing circuitry contains an A-to-D converter that self-calibrates (normalizes) the internal gain of the device to minimize the effect of air gap variations. The patented peak-detecting filter circuit provides immunity to magnet and system offsets and has the ability to discriminate relatively fast changes such as those caused by tilt, gear wobble, and eccentricities. This easy-tointegrate solution provides first falling edge detection and stable operation to extremely low rpm. The ATS617 can be used as a replacement for the ATS616.
The ATS617 is ideal for use in systems that gather speed, position, and timing information using gear-tooth-based configurations. This device is particularly suited to those applications that require extremely accurate duty cycle control or accurate edge-detection, such as automotive camshaft sensing.

Product Number: ATS617

Class: Sensors, Transducers Magnetic Sensors, Switches (Solid State)

Tag: Gear-tooth Sensor ICs, Board Mount Hall Effect Sensor ICs, Magnetic Sensors

Self-calibrating for tight timing accuracy
First-tooth detection
Immunity to air gap variation and system offsets
Immunity to signature tooth offsets
Integrated capacitor provides analog peak and valley information
Low timing-accuracy drift with temperature changes
Low radiated emissions
Integrated, series resistor on VCC pin for improved transient immunity
Large air gap capability
Small, integrated package
Optimized magnetic circuit
Undervoltage lockout (UVLO)
Wide operating voltage range

Part Number Output Type Features Sensing Range Mounting Type Output Voltage Function Operating Supply Current Maximum Frequency Operating Temperature Voltage - Supply Package Type
ATS617 Open Drain Temperature Compensated 70% Trip, 30% Release Through Hole 100 mV Special Purpose 6 mA 20 kHz -40 °C ~ 150 °C(TA) 4.5V ~ 24V 4-pin SIP (suffix SG)
