AIP5D05E060Q4 Dual-In-Line Package Intelligent Power Module

Alpha and Omega Semiconductor

AIP5D05E060Q4 ：IPM5，Dual-In-Line Package Intelligent Power Module

The IPM5 series Intelligent Power Module that is integrated Alpha and Omega Semiconductor's latest AlphaIGBT™ provides an extremely low Qrr FRD, and robust gate drive IC, offering high efficiency, low EMI, and enhanced ruggedness for inverter-driven applications, including refrigerators, washing machines, dryers, and fan motors.

Product Number: AIP5D05E060Q4

Class: Dual-In-Line Package Intelligent Power Module, Intelligent Power Module , IPM5 , IPMs

Tag: Intelligent Power Module, IPM5 , IPMs

UL Recognized
600V-5A (Trench Shielded Planar Gate IGBT)
3 phase Inverter module including HVIC drivers
Built-in bootstrap diodes with integrated current-limiting resistor
Built-in bootstrap diodes with integrated current-limiting resistor
Control supply under-voltage lockout protection (UVLO)

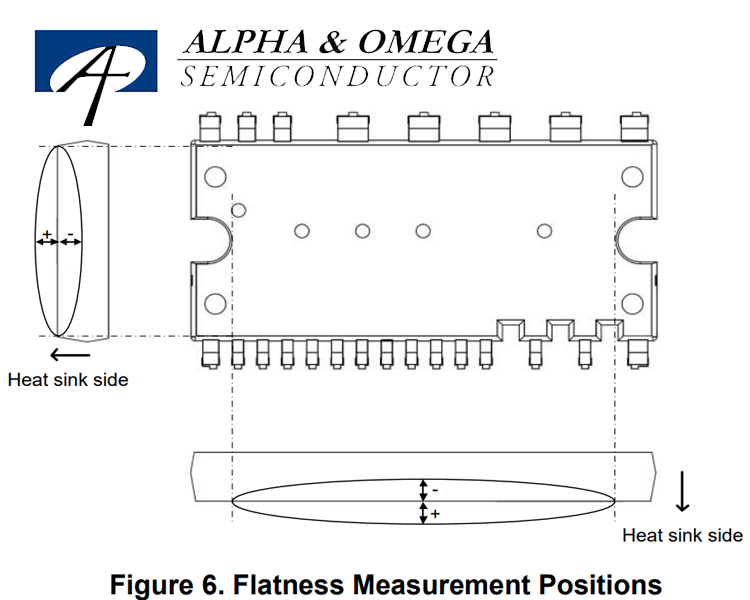

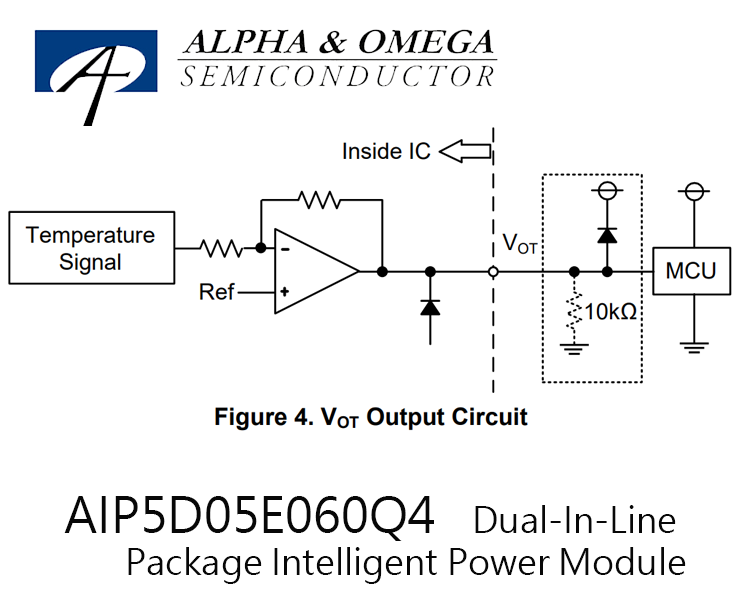

Over-temperature (OT) protection and temperature monitoring (VOT) - pin open
Temperature monitoring only (VOT) - 10kΩ resistor connection
Short-circuit current protection (CSC)
Controllable fault out signal (VCF) corresponding to SC, UV and OT fault
Wide input interface (3-18V), Schmitt trigger receiver circuit (Active High)
Very good EMI behavior
Isolation ratings of 2000Vrms/min

Applications ：
AC 100-240Vrms class low power motor drives
Washing Machines, Compressors, Fan Motors, Refrigerators and Dishwashers

Part Number Configuration Function Input Logic Rated Voltage IC VCE(sat) VF Emitter Configuration Operating Temperature Isolation ratings Package Type

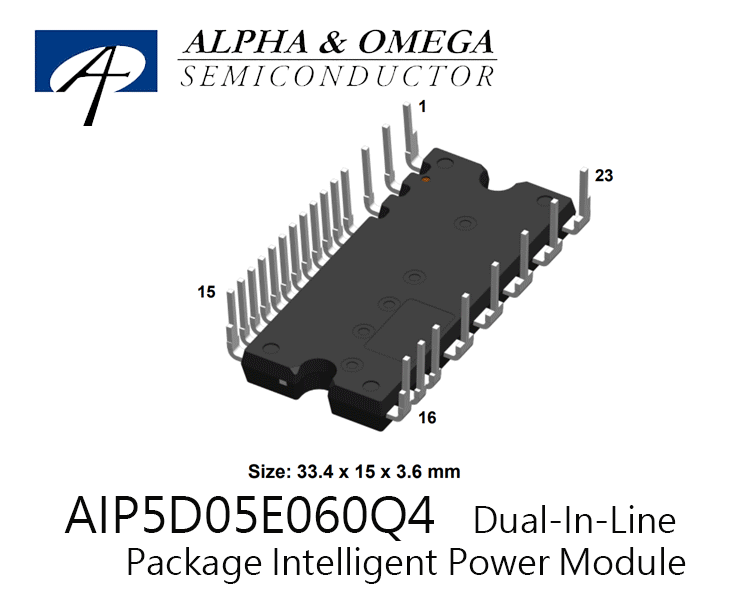

AIP5D05E060Q4 IPM5 3-phase ESD-IGBT IPM, Low EMI Active High 600V 5A 1.48V 1.75V Separated -40°C to 150°C(TA) 2000Vrms/min IPM-5
