A4915 3-Phase MOSFET Driver
A4915 : Three-Phase MOSFET Driver
The A4915 is a three-phase MOSFET driver capable of high current gate drive for 6 all N-channel power MOSFETs. An internal charge pump ensures gate drive down to 7 V supply and provides limited gate drive down to 5 V. The device improves time to market by eliminating complicated software development which saves overall system costs for customers.
A bootstrap capacitor is used to generate a supply voltage greater than the source voltage of the high side MOSFET, required for N-channel MOSFETs.
Internal synchronous rectification control circuitry is provided to improve power dissipation in the external MOSFETs during PWM operation. Internal circuit protection includes latched thermal shutdown, dead time protection, and undervoltage lockout. Special power up sequencing is not required.
Allegro recommended hall latches: APS13290-1.

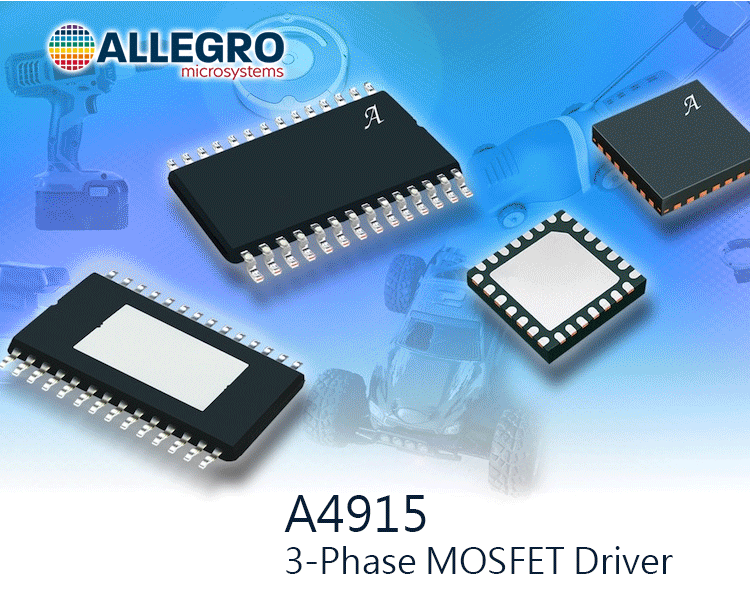

The A4915 is supplied in a 28-pin TSSOP with an exposed thermal pad (suffix LP) and a 28-contact 5 × 5 mm QFN with an exposed thermal pad (suffix ET). These packages are lead (Pb) free, with 100% matte tin leadframe plating.
|Operating Supply Current
|Number of Outputs
|Voltage - Supply
|-20 °C ~ 105 °C(TA)
|5.5V ~ 50V
| 28-pin TSSOP with an exposed thermal pad (suffix LP)
28-contact 5×5mm QFN with an exposed thermal pad (suffix ET)
