AONS66916 Medium Voltage MOSFETs (40V - 400V)

Alpha and Omega Semiconductor

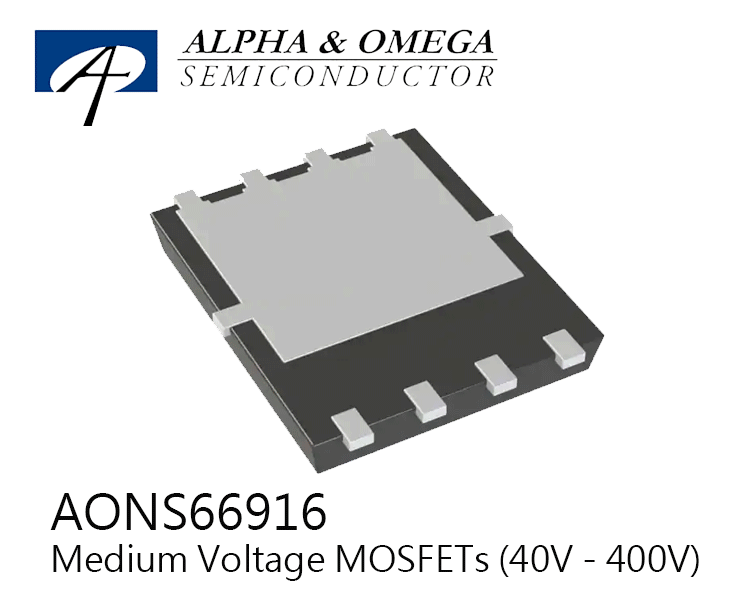

AONS66916 100V N-Channel AlphaSGT™

N-Channel 100 V 100A (Tc) 215W (Tc) Surface Mount 8-DFN (5x6)

Product Number: AONS66916

Class: MOSFETs ,Transistors, FETs-MOSFETs, Single-FETs-MOSFETs

Tag: MOSFETs, Single-FETs-MOSFETs

Trench Power AlphaSGTTM technology
Low RDS(ON)
Low Gate Charge
Optimized for Fast-Switching Applications
RoHS and Halogen-Free Compliant

Applications ：
Synchronous Rectification in DC/DC and AC/DC Converters
Industrial and Motor Drive applications

Part Number FET Type FET Feature Technology BVDSS Rds On (Max) @ Id, Vgs ID max Power Dissipation (Max) Gate Charge (Qg) (Max) @ Vgs Vgs(th) (Max) @ Id Vgs (Max) Operating Temperature Input Capacitance (Ciss) (Max) @ Vds Package Type
AONS66916 N-Channel - MOSFET (Metal Oxide) 100 V 3.6mOhm @ 20A, 10V 100 A 6.2W (Ta), 208W (Tc) 95 nC @ 10 V 3.6V @ 250µA ±20V -55°C ~ 150°C (TJ) 5325 pF @ 50 V 8-PowerSMD, Flat Leads

See more...AOS

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on Aug, 2017
