AAS33001 Precision Angle Sensor

Allegro MicroSystems

AAS33001: Precision Angle Sensor IC with Incremental and Motor Commutation Outputs and On-Chip Linearization

The AAS33001 is a 360° angle sensor IC that provides contactless high-resolution angular position information based on magnetic circular vertical Hall (CVH) technology. It has a system-on-chip (SoC) architecture that includes: a CVH front end, digital signal processing to calculate the angular position information, and multiple output formats: serial protocol (SPI), pulse-width modulation (PWM), and either motor commutation (UVW) or encoder outputs (A, B, I). It also includes on-chip EEPROM technology, capable of supporting up to 100 read/write cycles, for flexible programming of calibration parameters.
The AAS33001 is ideal for automotive applications requiring 0° to 360° angle measurements, such as electronic power steering (EPS), electronic power braking (EPB or IDB), transmission actuators, and BLDC pumps.
The AAS33001 includes on-chip 32 segment linearization. This can be used to calibrate out errors due to misalignment between the magnet and the sensor or imperfect magnetization of the target magnet (which can present itself as a misalignment of the magnet to the sensor).
The AAS33001 supports customer integration into safety critical applications.

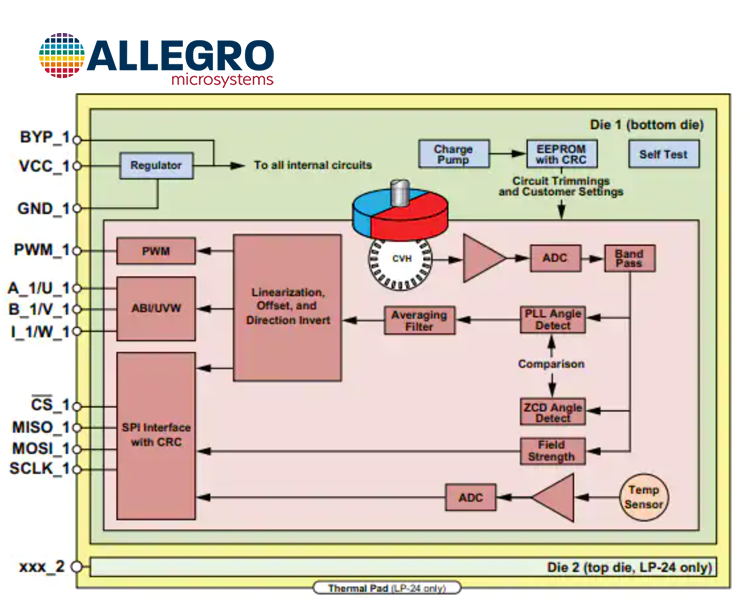

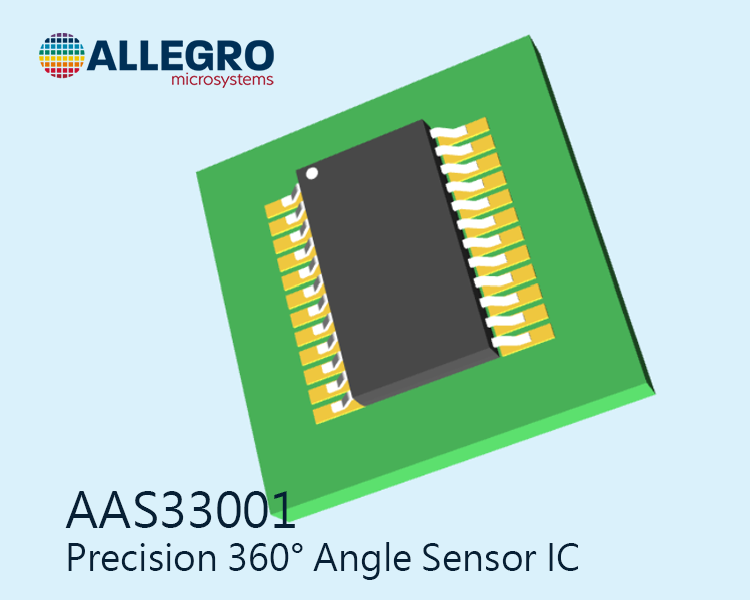

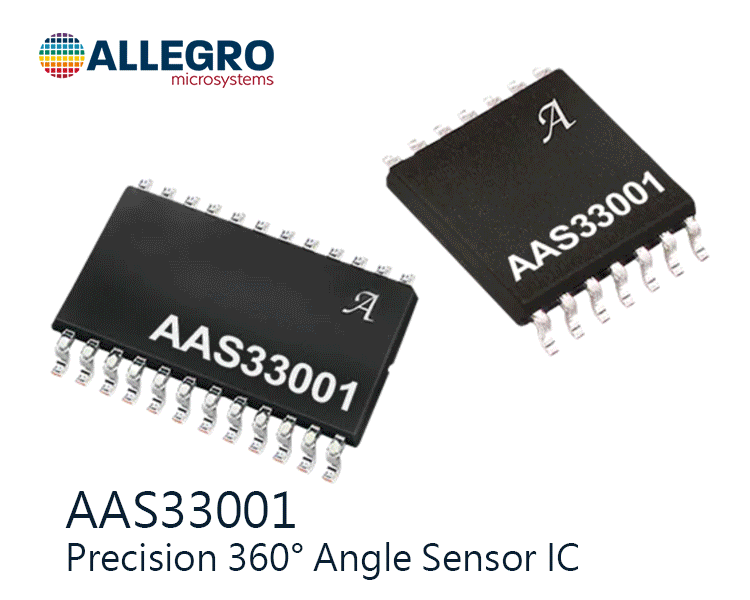

The AAS33001 is available in a dual-die 24-pin eTSSOP and a single-die 14-pin TSSOP package. The packages are lead (Pb) free with 100% matte-tin leadframe plating. The 1 mm thin package reduces the minimum air gap between the CVH transducer and the target magnet. The AAS33001 device is pin-compatible with the A1333 to enable easy migration.
AAS33001 was developed in accordance with ISO 26262:2011 as a hardware safety element out of context. The single die version was designed with ASIL B capability, and the dual die version designed to meet ASIL D capability for use in automotive safety-related systems when integrated and used in the manner prescribed in the applicable safety manual and datasheet.

Product Number: AAS33001

Class: Sensors, Transducers Position Sensors Angle, Linear Position Measuring

Tag: 360° angle sensor IC , Precision Angle Sensor

Contactless 0° to 360° angle sensor IC, for angular position, rotational speed, and direction measurement
Capable of sensing magnet rotational speeds targeting 12.5-bit effective resolution with 300 G field; higher effective resolution possible at higher field strengths
Circular Vertical Hall (CVH) technology provides a single channel sensor system, with air gap independence
On-chip 32 segment linearization to improve angle accuracy
Reduces impact of magnet to sensor misalignment
Reduces impact of imperfect magnetization of target magnet
Developed as a Safety Element out of Context (SEooC) in accordance with ISO 26262:2011 requirements for hardware product development for use in safety-critical applications.
High diagnostic coverage
On-chip diagnostics include logic built-in self-test (LBIST), signal path diagnostics, and watchdogs to support safety critical applications
4-bit CRC on SPI
On-chip EEPROM for storing factory and customer calibration parameters
Single-bit error correction; dual-bit error detection, error correction control (ECC)
Supports operating in harsh conditions required for automotive and industrial applications, including direct connection to 12 V battery
Operating temperature range from –40°C to 150°C
Operating supply voltage range from 3.7 to 18 V, absolute maximum of 28 V continuous
Can support ISO 7637-2 Pulse 5b up to 39 V

Part Number Output Output Signal Rotation Angle Mounting Type Termination Style Actuator Type Operating Supply Current Moisture Sensitive Operating Temperature Voltage - Supply Package Type
AAS33001 PWM Clockwise Increase 0° ~ 360° Surface Mount Gull Wing External Magnet, Not Included 17 mA Yes -40 °C ~ 150 °C(TA) 3.7V ~ 18V 24-pin eTSSOP (Suffix LP) / 14-pin TSSOP (Suffix LE)
