AIM703S60C1 Intelligent Power Module

Alpha and Omega Semiconductor

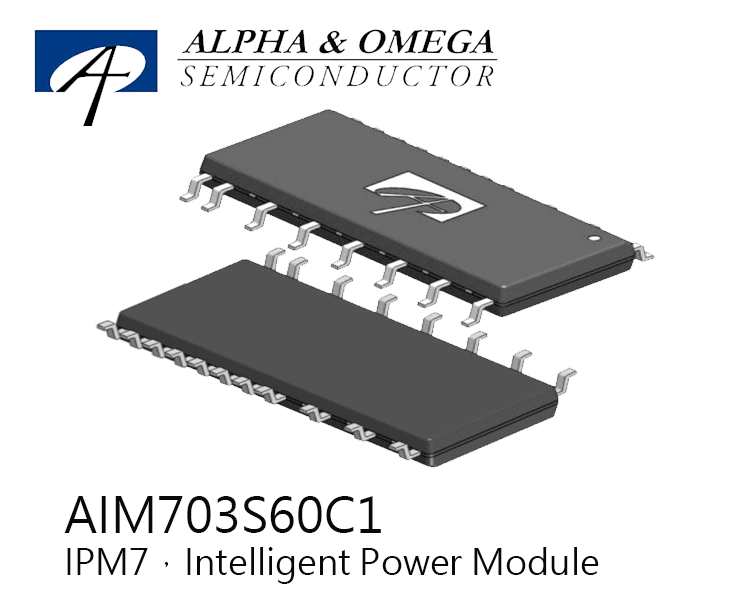

AIM703S60C1 :IPM7,Intelligent Power Module

The IPM7 series product integrated with advanced super junction MOSFETs is designed for motor drive and robust high voltage gate driving ICs in a new ultra-compact surface mountable package. This series is optimized for low-power BLDC motor drives system such as fan motors in home appliances that require highly compact size. It also features fast and precise over-temperature and over-current protection.

Product Number: AIM703S60C1

Class: Dual-In-Line Package Intelligent Power Module, Intelligent Power Module , IPM7 , IPMs

Tag: Intelligent Power Module, IPM7 , IPMs

600V, RDS(on) = 3.4Ω (Max)
Advanced MOSFET technology (αMOS5 TM) for motor drives
Low loss and EMI

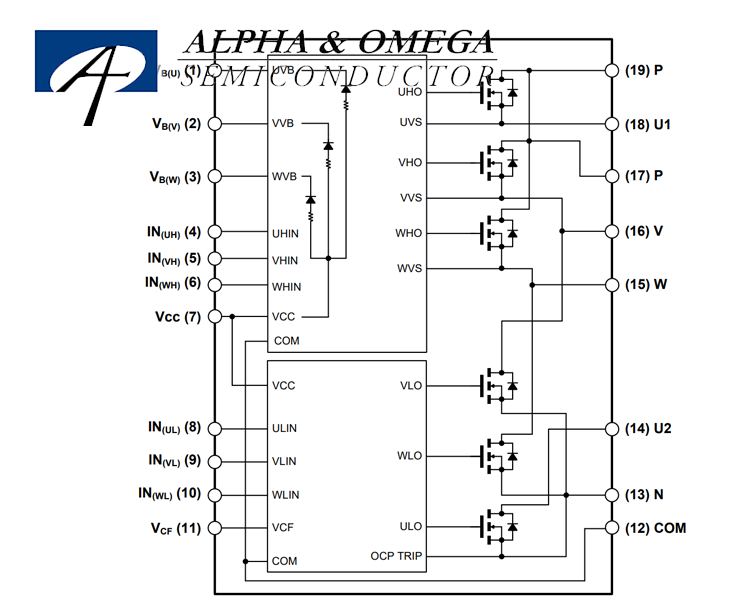

3-phase Inverter module including HVIC drivers
Wide input interface (3-18V), Schmitt trigger receiver circuit (Active High)
Built-in bootstrap diodes with integrated current-limiting resistor
Control supply under-voltage lockout protection (UVLO)
Over-temperature (OT) protection
Over-current protection (OCP)

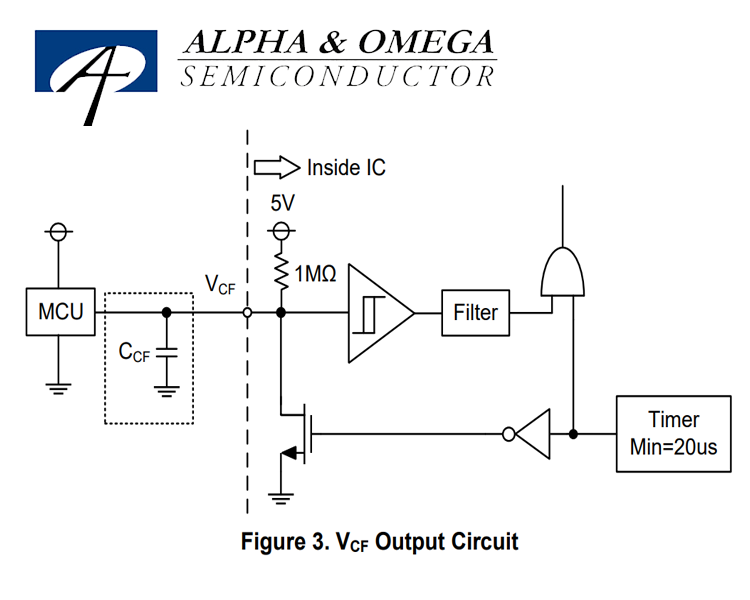

Controllable fault out signal (VCF) corresponding to OC, UV, OT fault
Isolation ratings of 1500Vrms/min

Applications :
AC 100-240Vrms class low power motor drives
Fan motors

Part Number Configuration Function Input Logic Rated Voltage RDS(on) Max Emitter Configuration Operating Temperature Isolation ratings Package Type
AIM703S60C1 IPM7 3-Phase MOSFET IPM Active High 600V Common -40°C to 150°C(TA) 2000Vrms/min IPM-7
