AOTF20B65LN2 Single IGBTs

Alpha and Omega Semiconductor

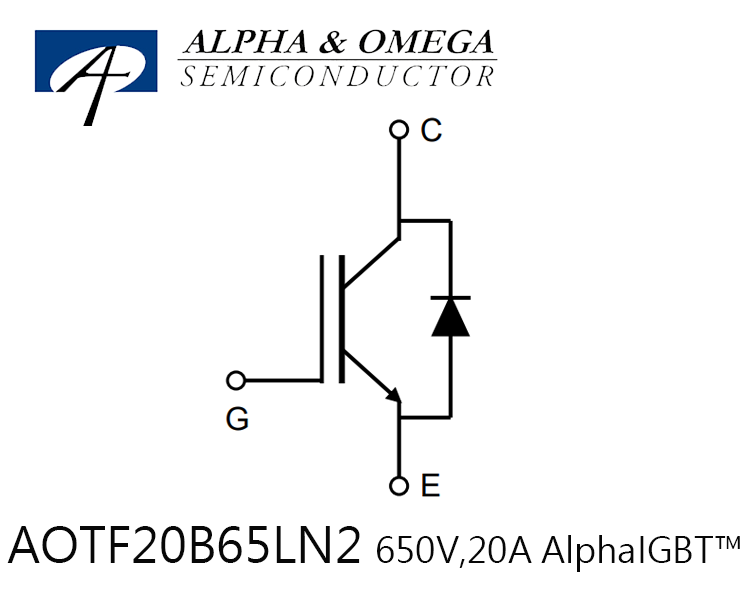

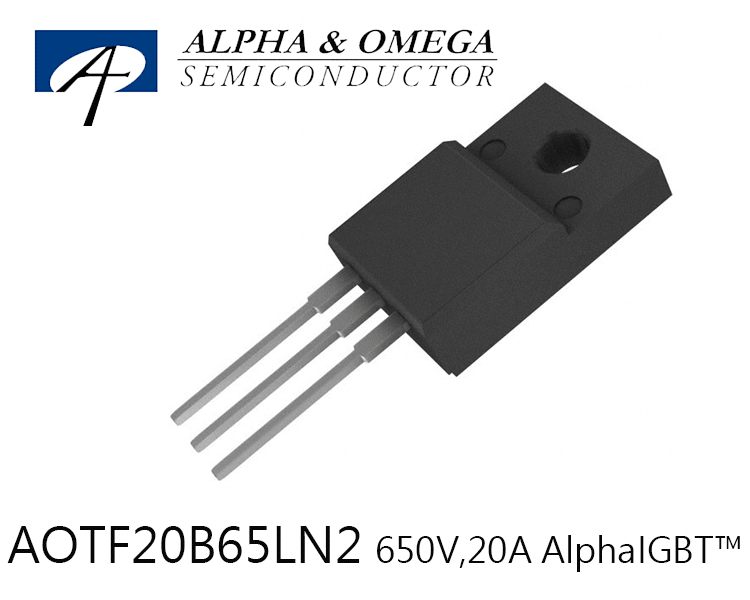

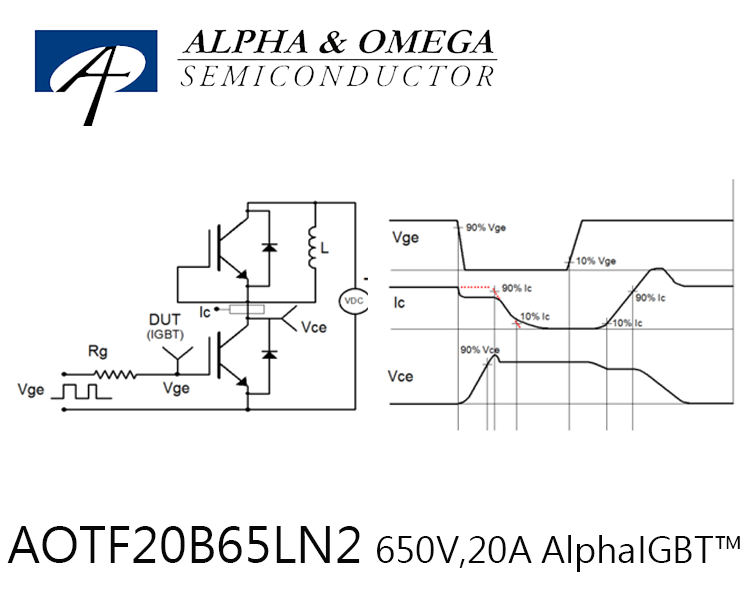

AOTF20B65LN2 :650V, 20A AlphaIGBT™ With Soft and Fast Recovery Anti-Parallel Diode

AlphaIGBT™ line of products offers industry-leading fast turn-off and low VCE(SAT) performance, allowing for a larger safety design margin. Designed with controllable turn-on di/dt features, AlphaIGBT devices enable lower EMI design effectively. Our IGBTs are ideal for major home appliance, industrial and automotive applications.

Product Number: AOTF20B65LN2

Class: Discrete Semiconductor Products,Transistors IGBTs, Single IGBTs

Tag: IGBTs, Single IGBTs

Latest AlphaIGBT (αIGBT) technology
650V breakdown voltage
Very low VCE(sat)
Very fast and soft recovery freewheeling diode
High efficient turn-on di/dt controllability
Low Turn-Off switching loss and softness
Very good EMI behavior

Applications :
Motor drives
Power tools and sewing machines
Mid to high range switching frequency converters
Other hard switching applications

Part Number Mounting Type Input Type Current - Collector (Ic) (Max) Voltage - Collector Emitter Breakdown (Max) Vce(on) (Max) @ Vge, Ic Power - Max Switching Energy Gate Charge Td (on/off) @ 25°C Test Condition Operating Temperature Reverse Recovery Time (trr) Package Type
AOTF20B65LN2 Through Hole Standard 40 A 650 V 1.95V @ 15V, 20A 45 W 450µJ (on), 260µJ (off) 52 nC 23ns/135ns 400V, 20A, 15Ohm, 15V -55°C ~ 150°C (TJ) 266 ns TO-220-3 Full Pack

See more...AOS
