AOTL66518 Hot Swap MOSFETs

Alpha and Omega Semiconductor

AOTL66518 : Hot Swap MOSFETs (25V - 150V),150V N-Channel AlphaSGT™

AOTL66518 is a Silicon MOSFET rated at 150V, 214A, 0.0043Ω Rdson(max) in TOLLA

Product Number: AOTL66518

Class: MOSFETs ,Transistors, FETs-MOSFETs, Single-FETs-MOSFETs

Tag: MOSFETs, Hot Swap MOSFETs

Trench Power MOSFET - AlphaSGT™ technology

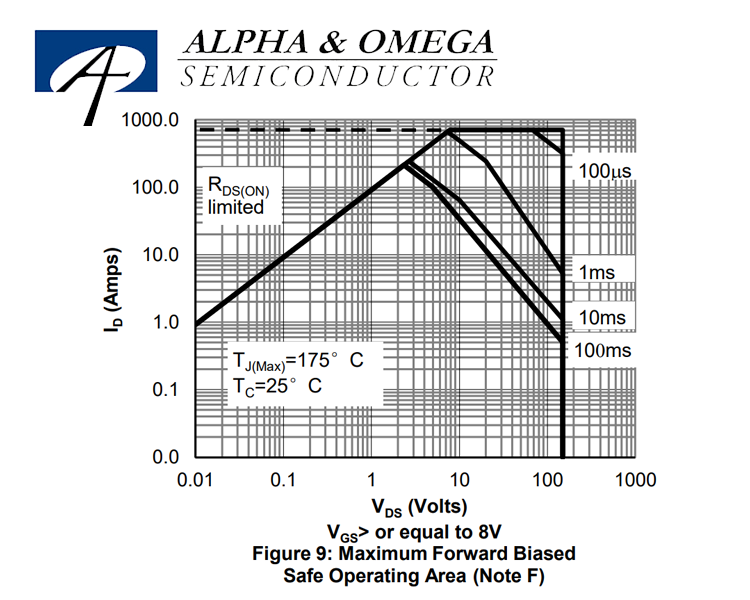

Combination of low R DS(ON) and wide safe operating area (SOA)
Higher in-rush current enabled for faster start-up and shorter down time
RoHS and Halogen-Free Compliant

Applications :
Load switch

Part Number Configuration Channel Material BVDSS RDS(ON) typ, max ID max PD max QGS typ, max (nC) QGD typ, max (nC) QG Total typ, max (nC) RthJA max RthJC max Operating Temperature Input Capacitance (Ciss) (Max) @ Vds Package Type

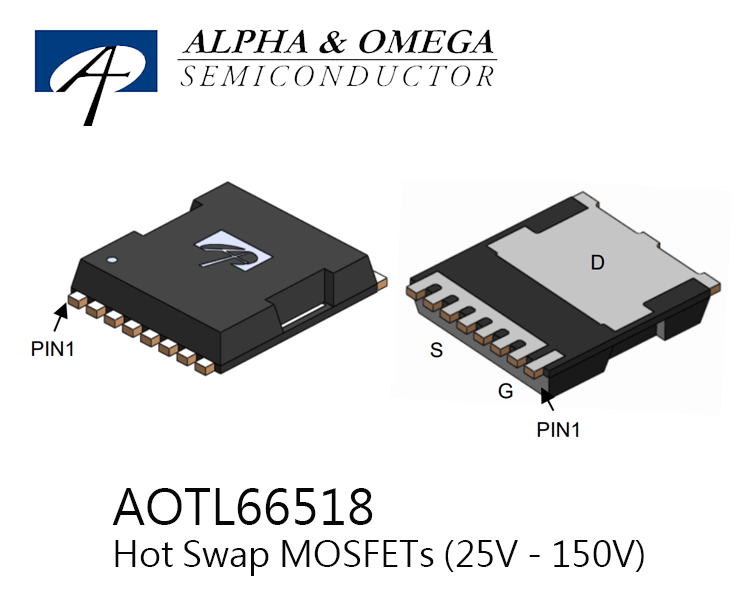

AOTL66518 single N-Type Silicon 150 V 0.0035, 0.0043Ω (At VGS = 10V, TA = 25°C) 214 A 500 W 32, na 15, na 80, 115 45 c/w 0.35 c/w -55°C ~ 175°C (TJ) 6460 pF @ 75 V TOLLA (Surface Mount, 8 Pins, Thermalpad: Bottom WxL: 9.90 x 11.68mm)

See more...AOS

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on Jun, 2020
