AOD609 Complementary MOSFETs (20V - 60V)

Alpha and Omega Semiconductor

AOD609 Complementary Enhancement Mode Field Effect Transistor

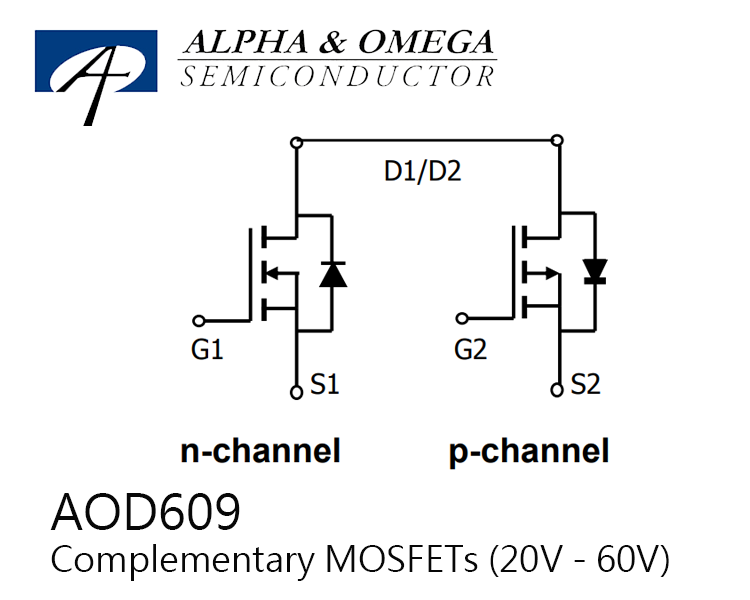

The AOD609 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge. The complementary MOSFETs may be used in H-bridge, Inverters and other applications.

Product Number: AOD609

Class: MOSFETs ,Transistors, FETs-MOSFETs, Single-FETs-MOSFETs


Drain-source voltage (Vdss) rating of 60V
Continuous drain current (Id) rating of 9.5A
Low on-resistance (Rds(on)) of 23mOhms
Fast switching speed

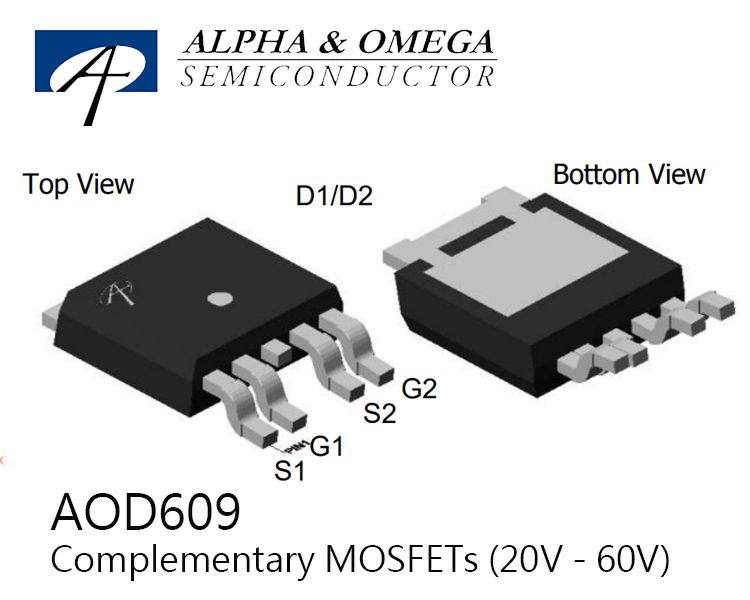

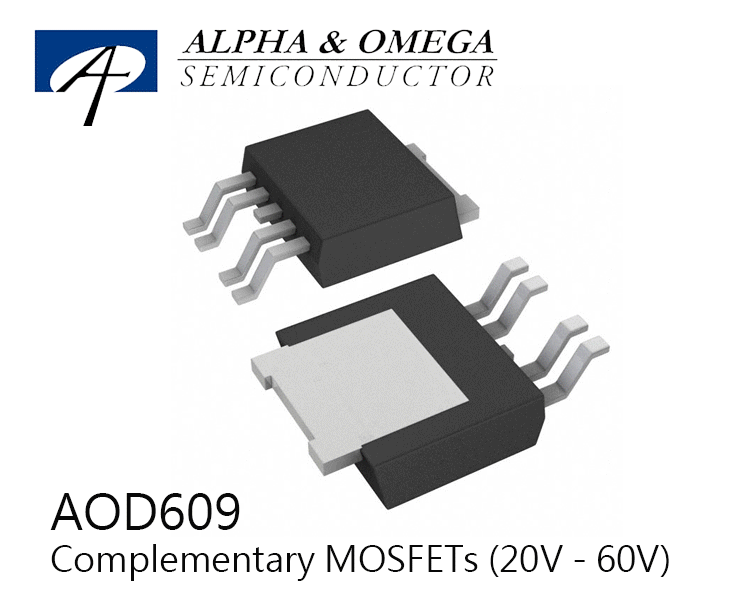

TO-252 package
These features make the AOD609 transistor suitable for use in a wide range of applications, including power supplies, motor control, and lighting circuits.

Part Number Configuration FET Feature Technology BVDSS Rds On (Max) @ Id, Vgs ID max Power Dissipation (Max) Gate Charge (Qg) (Max) @ Vgs Vgs(th) (Max) @ Id Vgs (Max) Operating Temperature Input Capacitance (Ciss) (Max) @ Vds Package Type
AOD609 N and P-Channel, Common Drain Logic Level Gate MOSFET (Metal Oxide) 40 V 30mOhm @ 12A, 10V 12 A 2.3W (Ta), 100W (Tc) 10.8nC @ 10V 3V @ 250µA ±25V -55°C ~ 175°C (TJ) 650pF @ 20V TO-252-5, DPak (4 Leads + Tab), TO-252AD

See more...AOS
