High-Efficiency EZBuck Synchronous Regulators

Alpha and Omega Semiconductor

Alpha and Omega’s regulators feature multiple protection functions such as output overvoltage protection, short-circuit protection, and thermal shutdown

The EZBuck synchronous regulators feature multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output overvoltage protection, short-circuit protection, and thermal shutdown. Several families are offered in QFN 3x3, 4x4, 5x5, DFN 3x3, TSOT23-6L and EPAD SO-8 packages making them ideal for industrial, telecom, and networking equipment.

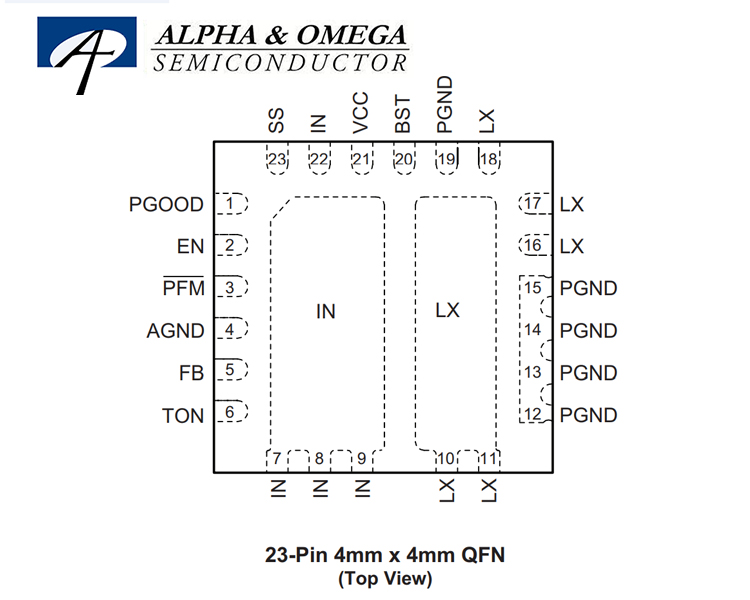

Product Number: AOZ2264QI / AOZ2233CQI

Class: Synchronous Regulators,PowerManagentIC(PMIC)

Tag: High-Efficiency EZBuck Synchronous Regulators,Synchronous Regulators ,EZBuck™: DC-DC Buck Regulators, Voltage Regulators

Wide VIN ranges from 3 V to 36 V
Output voltages adjustable to 0.6 V and 0.8 V
Pin compatible families cover a wide IOUT range of 2 A to 30 A
Programmable On-times
Selectable PFM light-load operation
Power good output
Ceramic capacitor stable
Selectable PFM light-load operation
Integrated bootstrap diode
Adjustable soft start
>90% high-efficiency operation reduces heat dissipation

Applications：
PoL DC/DC converters
Industrial automation
Telecom/networking/datacom equipment Portable computers Servers Graphics cards Set-top boxes LCD TVs Cable modems

Part Number VIN VOUT Max Output Control Mode VCC Supply Operating Freq Quiescent Current Soft Start High Side FET RDSON Low Side FET RDSON Maximum Duty Cycle Digital Interface Features and Notes
AOZ2232CQI-02 6.5~28 V 0.6~1.791 V 6A COT Internal 400kHz 500uA 4ms 28mΩ 18mΩ 85% 12C Selectable light load mode (PWM/PFM) and protection mode (latch/auto-restart) with I2C
AOZ2233CQI-12 6.5~28 V 0.9~1.191 V 8A COT Internal 400kHz 500uA 4ms 18mΩ 11mΩ 85% 12C Selectable light load mode (PWM/PFM) and protection mode (latch/auto-restart) with I2C
AOZ2264QI-11 2.7~24 V 0.6~20 V 15A COT External 1000kHz 150uA External 9mΩ 4mΩ 85% NA Hign-current buck for Computing
AOZ2264QI-20 2.7~24 V 0.6~20 V 15A COT External 1000kHz 150uA External 9mΩ 4mΩ 85% NA Hign-current buck for Computing

See more...AOS

  • See below for downloadable documentation, software, and other resources.

    AOZ2264QI-11 Datasheet Download on Mar, 2019
    OZ2264QI-20 Datasheet Download on Jun, 2019
    EZBUCK Design Tool Download on Jun, 2019
