AHV85110 Isolated GaNFET Gate Driver

Allegro MicroSystems

AHV85110: Self-Powered Single-Channel Isolated GaNFET Gate Driver with Power-Thru Integrated Isolated Bias Supply

The AHV85110 isolated gate driver is optimized for driving GaNFETs in multiple applications and topologies. An isolated output bias supply is integrated into the driver device, eliminating the need for any external gate drive auxiliary bias supply or high-side bootstrap. This greatly simplifies the system design and reduces EMI through reduced total common-mode (CM) capacitance. It also allows the driving of a floating switch in any location in a switching power topology.
The driver has fast propagation delay and high peak source/ sink capability to efficiently drive GaNFETs in high-frequency designs. High CMTI combined with isolated outputs for both bias power and drive make it ideal in applications requiring isolation, level-shifting, or ground separation for noise immunity.

Product Number: AHV85110

Class: Isolated Gate Drivers

Tag: Isolated Gate Drivers, Isolated GaNFET Gate Driver, Motion

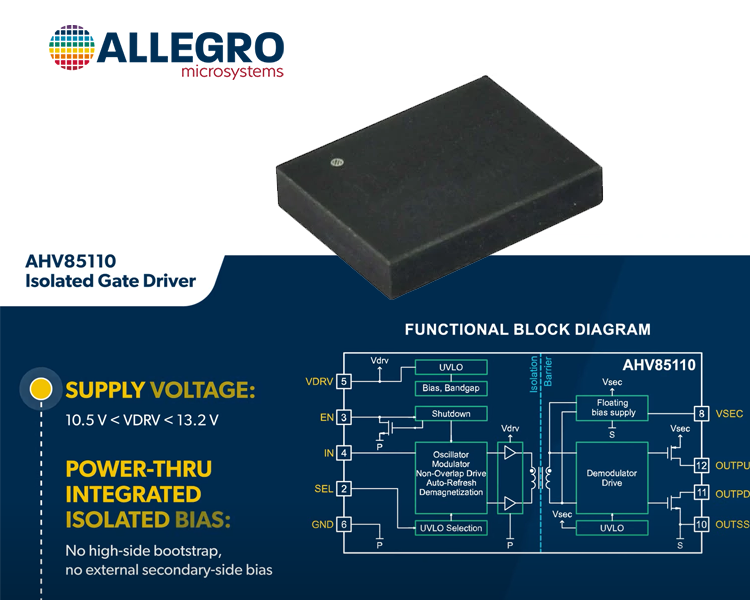

Power-Thru integrated isolated bias
No high-side bootstrap
No external secondary-side bias

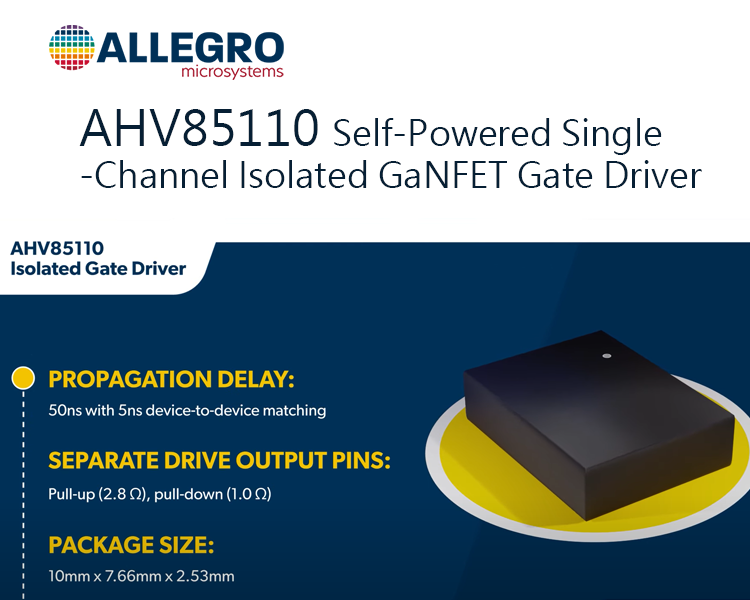

50 ns propagation delay, with excellent device-to-device matching of 5 ns
Separate drive output pins: pull-up (2.8 Ω) and pull-down (1.0 Ω)
Supply voltage 10.5 V (VDRV) 13.2 V
Undervoltage lockout on primary VDRV and secondary VSEC

Applications :
AC-DC and DC-DC converters – totem-pole PFC, Half-/Full-Bridge, LLC, SR Drive, multi-level converters, phase-shifted full-bridge, etc.
Automotive – OBC, Traction Drive
Industrial – Transportation, Robotics
Grid Infrastructure – Micro-Inverters, solar

Part Number Isolation Working Voltage Polarity Channels Switch Availability Package Separate drive output pins Operating Temperature Operating Supply Voltage Package Type
AHV85110 5KV 630 unipolar Single GaN available NH pull-up (2.8 Ω) / pull-down (1.0 Ω) -40 °C ~ 125 °C(TJ) 10.5 V ~13.2 V 10 × 7.66 × 2.53 mm 12-pin low-profile surface mount

See more...Allegro

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on Aug, 2022
