AOTL66912 Hot Swap MOSFETs
Alpha and Omega Semiconductor

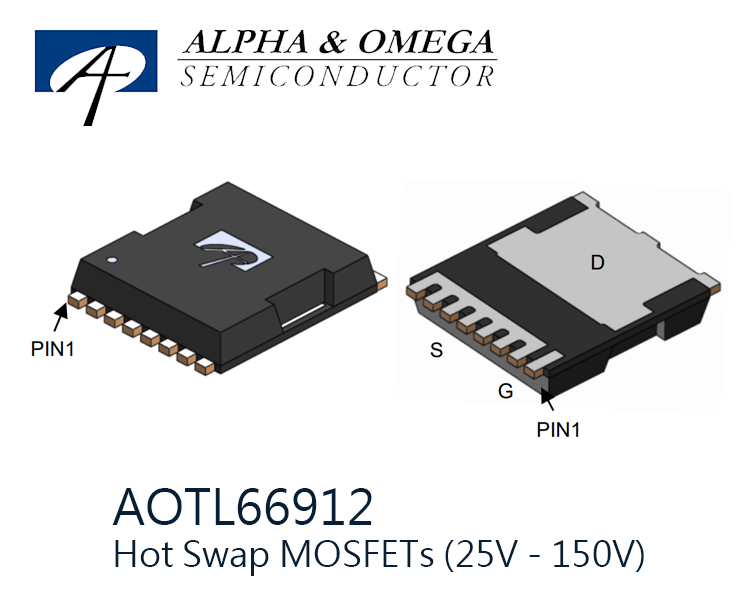

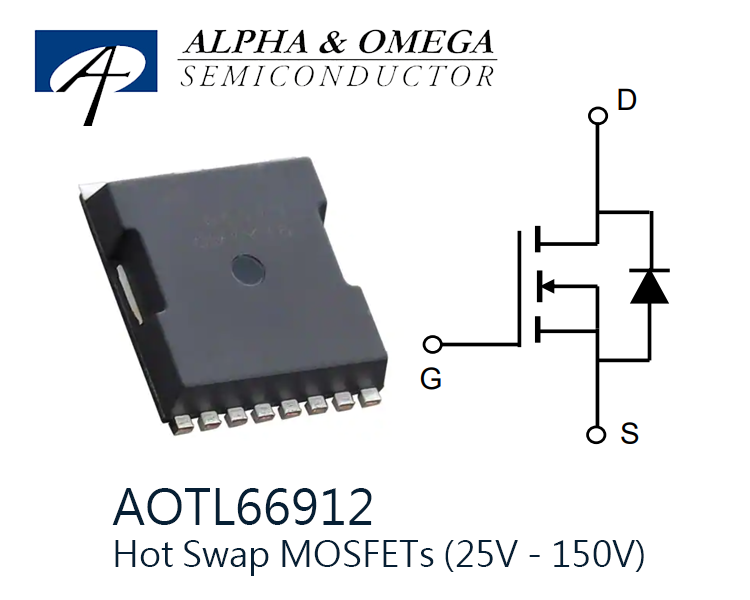

AOTL66912 : Hot Swap MOSFETs (25V - 150V),100V N-Channel AlphaSGT™
AOTL66912 is a Silicon MOSFET rated at 100V, 380A, 0.0017Ω Rdson(max) in TOLLA
Part Number | Configuration | Channel | Material | BVDSS | RDS(ON) typ, max | ID max | PD max | QGS typ, max (nC) | QGD typ, max (nC) | QG Total typ, max (nC) | RthJA max | RthJC max | Operating Temperature | Input Capacitance (Ciss) (Max) @ Vds | Package Type |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AOTL66912 | single | N-Type | Silicon | 100 V | 0.0014, 0.0017Ω (At VGS = 10V, TA = 25°C) | 380 A | 500 W | 48, na | 31, na | 155, 220 | 45 c/w | 0.35 c/w | -55°C ~ 175°C (TJ) | 12500 pF @ 50 V | TOLLA (Surface Mount, 8 Pins, Thermalpad: Bottom WxL: 9.90 x 11.68mm) |
-
Datasheet Download on Jun, 2019
