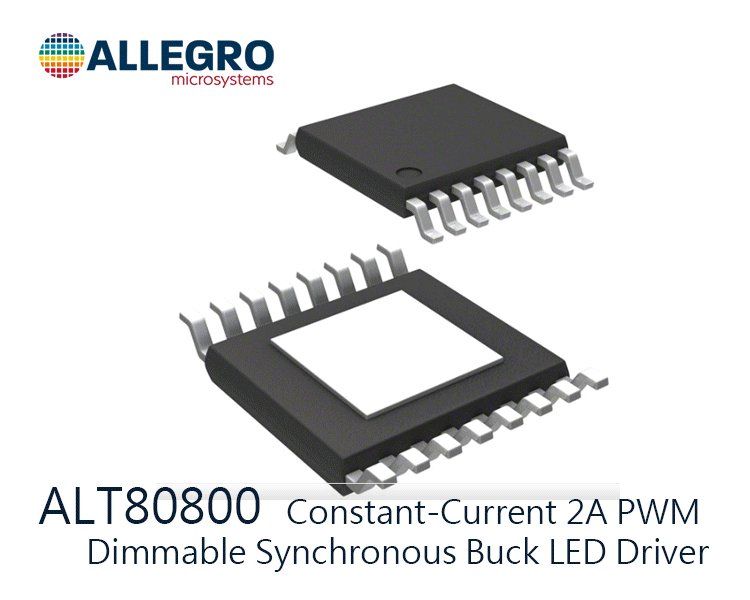

ALT80800 Constant-Current 2.0 A PWM Dimmable Synchronous Buck LED Driver
Allegro MicroSystems
ALT80800: Automotive-Grade, Constant-Current 2.0 A PWM Dimmable Synchronous Buck LED Driver
The ALT80800 is a compact, high-efficiency, low EMI LED Driver for automotive lighting applications. It is a synchronous buck switching regulator that provides constant-current output to drive high-power LEDs. It integrates both high-side and low-side N-channel DMOS switches for DC-to-DC step-down conversion. Output current is user-selectable by an external current sense resistor, and output voltage is automatically adjusted to drive various numbers of LEDs in a single string.
| Part Number | Type | Output Current | Topology | Mounting Style | Operating Frequency | Dimming | Applications | Maximum Frequency | Operating Temperature | Voltage - Supply | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|---|

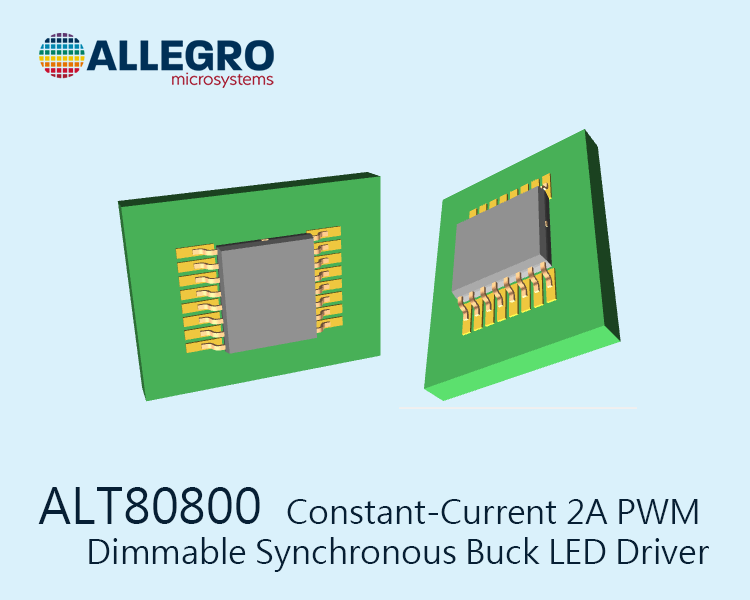

| ALT80800 | DC DC Regulator | 2A | Step-Down (Buck) | Surface Mount | 500kHz | Analog, PWM | Lighting | - | -40 °C ~ 125 °C(TA) | 4.5V ~ 55V | 16-Pin eTSSOP (suffix LP) |
-
Datasheet Download on Nov, 2021
