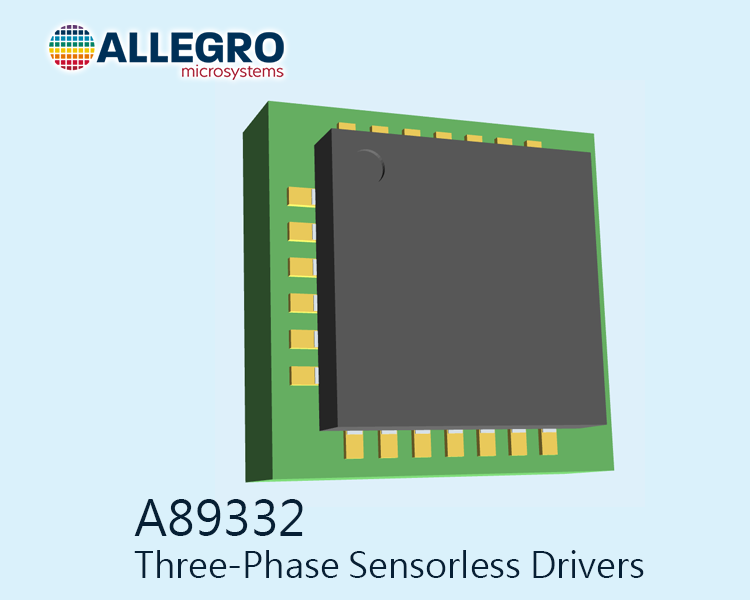

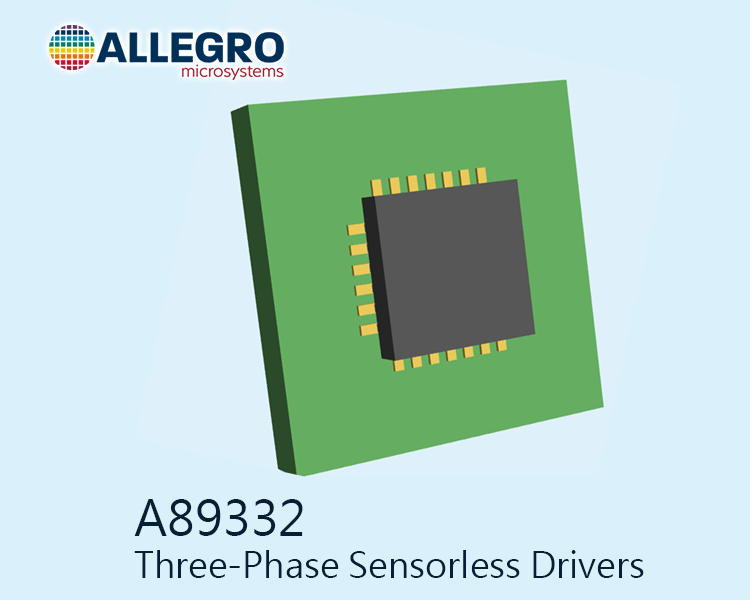

A89332 Three-Phase Sensorless Fan Controller

Allegro MicroSystems

A89332 : Three-Phase Sensorless Fan Controller

The A89332 three-phase motor controller incorporates a sensorless sinusoidal drive to minimize vibration for highpower, high-speed server fans. Sensorless control eliminates the requirement for Hall sensors for server fan applications.
A flexible, closed-loop speed control system is integrated into the IC. An EEPROM is used to tailor the common functions of the fan speed curve to a specific application. This eliminates the requirement for a microprocessor-based system and minimizes programming requirements.

Product Number: A89332

Class: Fan, Motor Controllers, Drivers, BLDC Drivers, Fan Drivers

Tag: BLDC Drivers, Three-Phase Sensorless Drivers, Motor, Motion, Ignition Controllers & Drivers

Closed-loop speed control
Power loss brake
Fault mode brake
Configurable rotor detect (RD) or frequency generator (FG) output
Speed curve configuration via EEPROM
I2C serial port
Sinusoidal modulation for reduced audible noise and low vibration
Sensorless (no Hall sensors required)
Trapezoidal drive option for high speed
Adjustable gate drive option
Minimal external components
PWM duty cycle speed input
FG speed output
Lock detection
Soft start
Shorted output protection (overcurrent protection, OCP)

Applications :
High-speed 12 V server cooling fans
Industrial and consumer blowers and fans

Part Number Type Output Current Technology Mounting Style Number of Outputs Moisture Sensitive Applications Output Voltage Operating Temperature Voltage - Supply Package Type

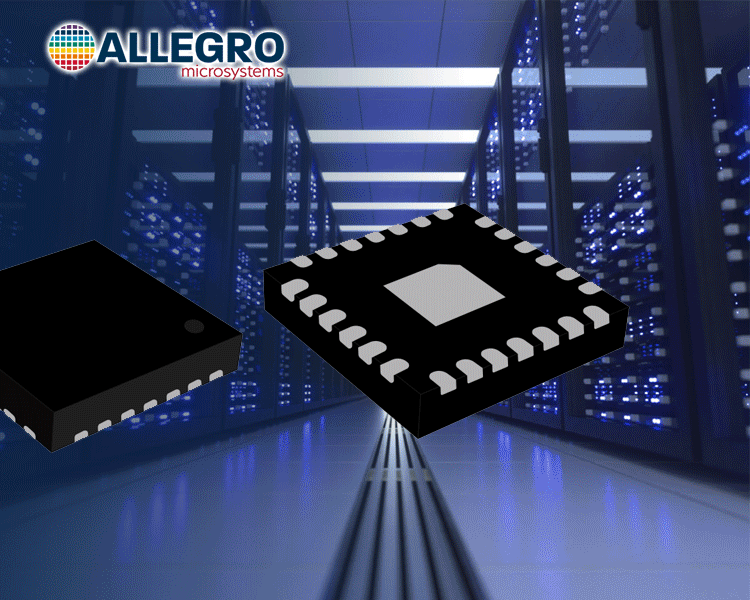

A89332 3 Phase 3A NMOS SMD/SMT 3 Outputs Yes Fan Controller 18V -40 °C ~ 105 °C(TA) -0.3V ~ 36V 26-Contact QFN with exposed pad (EX package)

See more...Allegro

  • See below for downloadable documentation, software, and other resources.

    Datasheet Download on May, 2022
