A89506 Full-Bridge PWM Gate Driver
with Input Controls
Allegro MicroSystems
The A89505 and A89506 full-bridge gate drivers offer effective replacement for relays and closure systems.
The full-bridge gate drivers can also be used to drive DC motors and actuators in conventional, hybrid, and electric vehicles. They're ideal for applications such as window and door actuators, EV charger locks, electronic parking brakes, and folding mirrors.
Their solid-state design also makes them ideal for battery-powered applications that incorporate brushed DC motors such as building automation and robotics, improving reliability and battery life while facilitating smaller design footprints.
Designed to our robust automotive standards and AEC-Q100 qualification, the A89505 and A89506 are ideal for closure systems and relay replacement applications improving reliability and performance in one of the smallest packages in the industry.
| Part Number | Driven Configuration | Channel Type | Number of Drivers | Gate Type | Logic Voltage - VIL, VIH | Input Type | Operating Temperature | Mounting Type | Package / Case | Package Type |
|---|---|---|---|---|---|---|---|---|---|---|
| A89506KLPTR | Full-Bridge | Synchronous | 4 | N-Channel MOSFET | 0.8V、2V | Non-Inverting | -40°C ~ 135°C (TA) | Surface Mount | 20-WFQFN Exposed Pad | 20-lead QFN-EP (4x4) |
Main Products
Allegro Micro Systems
A33115 Precision TMR Angle Sensor
360° angle sensor that provides high-resolution angular position information.
Current Sensor
Integrated shield virtually eliminates capacitive coupling from current conductor to die, greatly suppressing output noise due to high dv/dt transients.
A31010 Unidirectional Linear Hall-Effect Sensors
Provide a voltage output proportional to the applied magnetic field.
A89506 Full-Bridge PWM Gate Driver
Ideal for DC motors and actuators in conventional, hybrid, and electric vehicles.
Brushless DC Drivers
Engineered to meet market challenges, delivering cost-optimized systems and improved time-to-market.
Brush DC Drivers
Broad portfolio of safe and robust brush DC solutions with both integrated and MOSFET gate drivers.
Stepper Motor Drivers
Delivers quiet, efficient, smooth motion to minimize noise and vibration in stepper motor designs.
Sensor Interface ICs
Allegro’s interface sensor ICs for speed and pressure sensors deliver fast and accurate output ideal for today’s demanding, space-constrained automotive and industrial applications.
Industrial Regulators
Allegro’s multiple-output DC/DC regulators enable smart and robust industrial designs.
Main Products
Alpha & Omega Semiconductor (AOS)
Power MOSFETs
Provides full range of MOSFET products are offered for a variety of applications.
Power ICs
Provides best-in-class power management solutions combining Power Discrete and IC technologies.
TVS
Provides a family of Ultra-low Capacitance Transient Voltage Suppressor (TVS), EMI Filtering, and ESD Diode Array products.
New Fast Switching 1200V αSiC MOSFETs
Ultra-low Loss Switching for High-Efficiency Applications

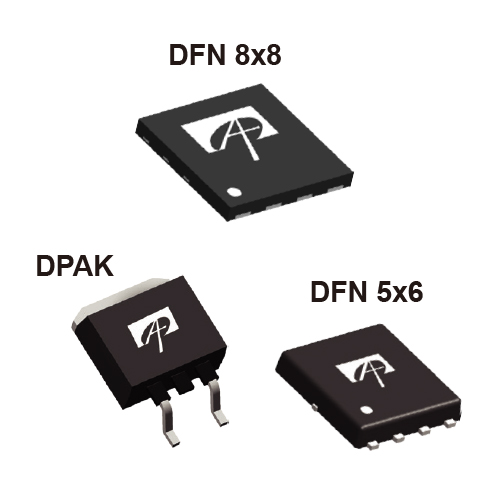

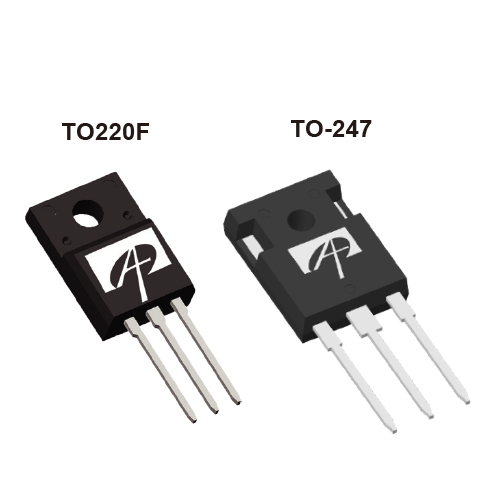

aMOS5™ HV Super Junction MOSFET
Low on-state resistance with aMOS5™ HV technology. Optimized switching performance. Versatile device for both hard switching and soft switching
HV Super Junction MOSFET for High-Efficiency High Density SMPS
High UIS Ratings for Avalanche Ruggedness. Hard Commutation Robustness.
Devoted to Excellent Professional Technical Support Throughout the Supply Chain
Everstar currently serves global semiconductor brands, including Allegro, AOS, Vincotech, and SHARP photocoupler, to offer products with complementary features. The products we carried integrate magnetic sensor chips, motor driver chips, power components, power modules, etc., to offer an extensive hardware infrastructure system design solution. The product applications focus on cloud server power suppliers, server cooling fan motor drivers, automotive power supply systems, LED lights, industrial motors, etc., targeted to broadly cover our customers' needs.
